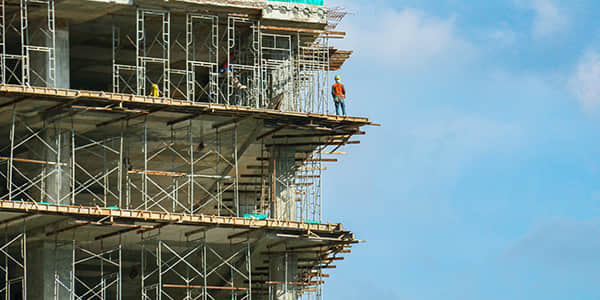

In the construction and engineering disciplines, H-Frame scaffolding (also referred to as sectional or frame scaffolding) forms one of two essential building block scaffolds. Simple and quick to erect, this scaffold should form the backbone of any scaffolding inventory. Yet as the tallest structures human beings create reach for the sky, so do the reasons we need to understand the limits to this type of scaffolding. Working without an understanding of height limits brings severe penalties.

This guide is aimed mainly at project managers, safety officers, and equipment rental staff to help you understand the limits of H-Frame scaffolding, specifically the maximum height. We’ll cover the regulatory implications and the key things you need to build the world’s tallest structures!

Official H-Frame Scaffolding Maximum Height?

There is no clear-cut maximum height for H-Frame scaffolding. Rather, the safe working maximum can be different based on a cascading list of factors. At the top of that list are regulation and engineering design.

1. Regulatory: The OSHA Standard

Here in the US, OSHA sets the basic standard, General OSHA - the rules are sometimes ratio study more than height number study.

• A key OSHA ratio: For non-mobile, non-supported scaffolds, OSHA usually requires that the height of the scaffold be no more than four times the minimum dimension of the base of the scaffold. The H: B Ratio is typically 4:1.

For example, if your short dimension of base is 5 feet wide, look to keep the scaffold 20 feet or less in the air unless it’s tied or braced against that building.

2. Manufacturer Specifications (The Engineering Limit)

The most conservative and binding height limit for any specific scaffold system comes directly from the manufacturer's instructions. This specification is based on:

• Weight Carrying Capacity: The maximum amount that the frames, cross braces, and planks can carry.
• Material Strength: The yield strength of the steel or aluminum alloy.
• Workmanship: Especially in the locking pins and coupling devices.
• A tip for rental companies: Always send along with the equipment the manufacturer’s data sheet that proves the load limits. This limits your liability and gets your customer to take responsibility for not exceeding the engineered limits.

Key Determinants Affecting Maximum Safe Height

Beyond the 4:1 ratio, several dynamic factors must be professionally assessed to calculate the true maximum height for an H-Frame scaffolding system on a specific job site:

A. Tie-In and Bracing Requirements

When a scaffold exceeds the 4:1 ratio (e.g., typically above 20-30 feet), it must be mechanically secured to the structure being worked on.

• Tie-In Frequency: OSHA mandates tie-ins at the following intervals:
• Horizontally: Every 30 feet (9.1 meters).
• Vertically: Every 20 feet (6.1 meters) for scaffolds 3 feet (0.9 meters) or wider.
• Vertically: Every 26 feet (7.9 meters) for narrower scaffolds.
• Anchor Strength: Anchors must be capable of resisting at least four times the maximum intended load applied or transmitted to the tie.

B. Base Plate and Foundation Stability

The maximum height can only be determined if the foundation is stable.

• Firm Footing: All base plates and screw jacks must rest on firm, level, and sound surfaces (e.g., concrete slab, mudsills/sole plates).
• Leveling: Scaffolding should be plumb and level. The taller the scaffold, the greater the compounding effect of any initial deviation from verticality.

C. Wind and Environmental Loadings

High-rise scaffolds are susceptible to strong lateral forces. Some comments as they apply to maximum height calculations for H-Frame scaffolding:

• Wind Load: Scaffolding located in areas exposed to the wind must be identified in the design pressures calculated from the net pressure from total exposed surface areas, which would include the wind exposure of sheeting and/or netting for containment. For any scaffolding above 60’, the scaffold drawings must be designed or cross-checked and sealed by a P.E. in the state where the project exists.
• Seismic Activity: In seismic zones, additional diagonal bracing and structural analysis are required to ensure stability.

Best Practices for High-Rise H-Frame Scaffold Management

In order for construction and engineering firms to promote effectiveness and a perfect safety record, the following steps are mandatory when dealing with maximum height applications:

1. Engineering Consultation is Mandatory

Any H-Frame scaffolding system over 125 feet (38 meters) high, or not following a manufacturer’s manual for a non-supported design, then a PE will develop a site-specific design, which accommodates tie-in calculations, load evaluations, and foundation requirements.

2. Comprehensive Scaffold Inspection Program

A tall scaffold requires constant vigilance.

• Pre-Shift Check: A competent person must inspect the scaffold before every shift.
• Post-Modification/Weather Check: Re-inspection after any repair, modification, or high-wind event is essential.
• Tagging System: Use the standard Green (Safe), Yellow (Caution/Maintenance), and Red (Do Not Use) tag system at all access points.

3. Comprehensive Training

The risk of maximum height with H-Frame scaffolding has a direct relationship to the quality of assembly. Ensure your erection and dismantling crew are trained in:

• Proper assembly sequence (bottom-up)
• Correct placement of cross-bracing and tie-ins
• Safe rigging and hoisting practices.

Conclusion

What is the maximum height of an H-Frame scaffolding system? The Maximum height for H-Frame scaffolding is the point of absolute compliance. Feet on the ground, propping you up for the big ascent, the denouement of Propriety, when ably executed. Except for the H-Frame height of a 4:1 ratio or otherwise properly tied. Marshal hurdle, nip and tag, accept scaff tag from the engineer for the big impact design in the high-rise, high-stakes drive.

FAQ

What is the 4:1 rule in scaffolding?

• The H: B ratio rule states that the scaffold's height must not exceed four times its narrowest base dimension (4:1) without being secured, tied, or restrained to the structure.

When do I need an engineer to approve my H-Frame scaffold?

• You need to have a Professional Engineer (PE) approve any H-Frame scaffold over 125 feet (38 meters), or complex loading, unique configurations, or heavy containment sheeting are involved.

Can H-Frame scaffolding be placed on soil or grass?

• Yes, a scaffold can be placed on dirt or grass, if an even load is supplied by using mudsills or sole plates of appropriate size, stable, and under base plates/jacks, to prevent settling and to provide a level foundation.
