China Construction Powder Coated Steel Kwikstage Scaffolding

The simple and quick connection method makes building steel kwikstage scaffolding a versatile, efficient and cost-effective alternative to conventional tube and coupler scaffolding.

  • Payment :

    TT
  • Color :

    customizable
  • Shipping Port :

    Tianjin/Guangzhou
  • Lead Time :

    7-40 days

      The Kwiskstage scaffolding system offers incredible versatility and adaptability due to its modular design, making it ideal for various purposes. It is particularly well-suited for situations where conventional scaffolding systems are unsuitable due to non-uniform building facades.

      For nearly four decades, Kwik-Stage has been the go-to modular scaffolding system in South Africa. It remains the preferred choice for entry and exit scaffolds in the country.



Versatility

    Workers demand a safe, flexible, and easy-to-use system – this product meets these needs.



Ease Of Use

    In a single move, four horizontal brackets can be attached to a single pressing, significantly speeding up the process of erecting the system.





Kwikstage Scaffolding Parts / Components


As China's top scaffolding manufacturer, we provide one-stop scaffolding supply, including its accessories and peripheral products

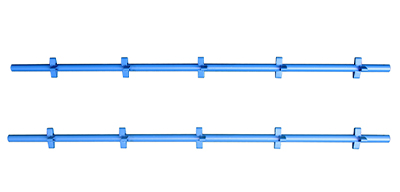

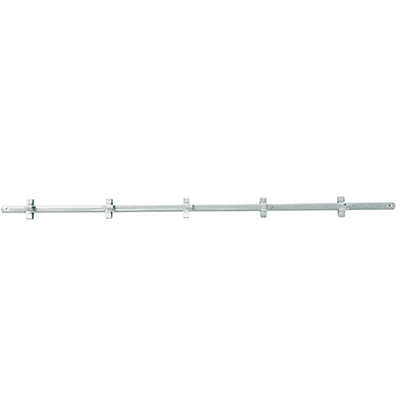

Scaffolding Standard



Standards are vertical structural member of the scaffold system



Size:

3000*2.75/3.0/3.25*48mm

2000*2.75/3.0/3.25*48mm

1000*2.75/3.0/3.25*48mm

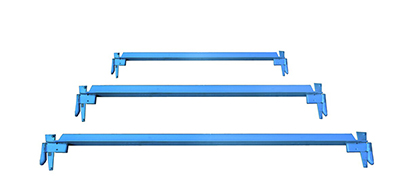

African Type Ledger



Ledgers is horizontal member of the kwikstage scaffold system



Size:

1770*2.75/3.0/3.25*48mm

1150*2.75/3.0/3.25*48mm

850*2.75/3.0/3.25*48mm

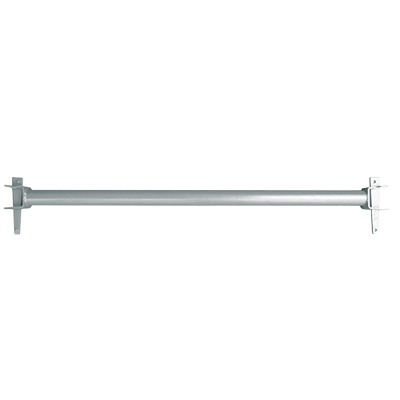

Australian Type Ledger



Ledgers fit into the upper pressings on the kwikstage standards.



Size:

2460*2.75/3.0/3.25*48mm

1960*2.75/3.0/3.25*48mm

1460*2.75/3.0/3.25*48mm



Diagonal Brace

Provides strength and stability to the scaffold

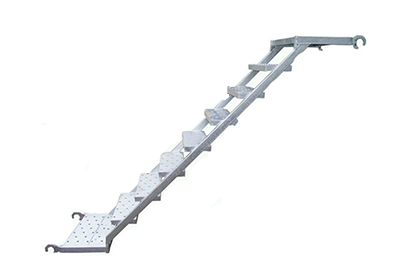

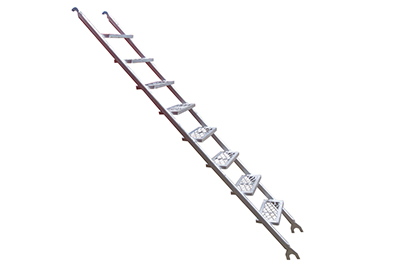

Step Ladder

We offer step ladders in different sizes

Scaffolding Ladder

Can be adapted to different types of scaffolding systems

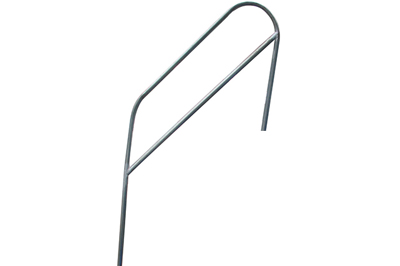

Guard Rail

Installed on the side of the step ladder for added safety





3D Model Display For Allround Kwikstage Scaffolding


Our professional designers, with ten years of design experience, can design 3D models of products according to your requirements and personalize your products.







Advantages Of Kwikstage Scaffolding


Through the advantages of Kwikstage scaffolding, we will guide you to correctly understand Kwikstage scaffolding.

  1. Speed and Efficiency: Kwikstage scaffolding is quick to assemble and disassemble, saving valuable time on construction sites.
  2. Safety: Kwik stage scaffolding is designed with safety features such as guardrails and toe boards, ensuring a secure working environment for construction workers.
  3. Durability: Typically constructed from high-quality steel, it can withstand harsh weather conditions and heavy loads, ensuring a long lifespan.
  4. Cost-Effective: Kwikstage scaffolding offers a cost-effective solution due to its reusability, durability, and time-saving assembly process.





Customized Service For Kwikstage Scaffolding




Surface Technology

The surface technology used in Kwikstage scaffolding is designed to increase its durability, corrosion resistance and overall longevity. Here is an introduction to some of the key surface treatment techniques used in Kwikstage scaffolding:



Pre-galvanized

  • Pre-galvanizing is when steel components are galvanized before being made into scaffolding components. The main advantage of pre-galvanizing is to provide a uniform anti-corrosion layer. However, any subsequent cutting, welding or drilling may dislodge the zinc layer, exposing the steel.

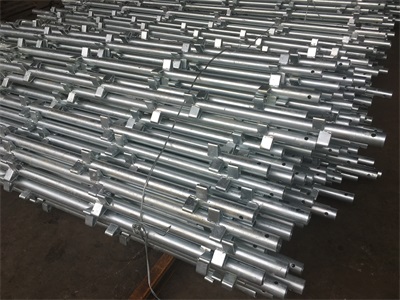

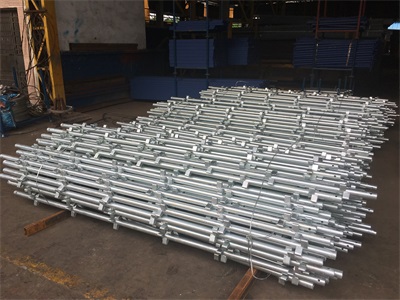

Hot Dip Galvanized

  • Hot-dip galvanizing involves immersing the fabricated scaffolding components in a bath of molten zinc. This results in a thick, durable coating that provides complete protection to the steel and is ideal for use in harsh outdoor conditions. And for minor scratches or damage, the coating can also repair itself.

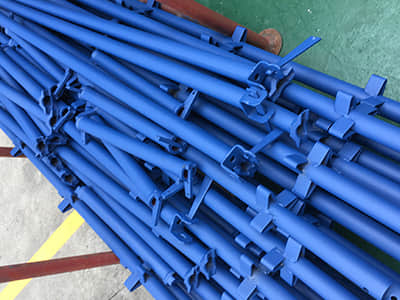

Powder Coating

  • The powder coating process involves applying dry powder to a metal surface and then curing it under heat to create a hard, protective surface. The technology provides excellent aesthetics and allows for color customization.



Personalise

1. Size and Dimensions: Offer variations in size and dimensions to accommodate different project needs.

2. Color Options: Offer custom color choices for branding or visibility purposes.

3. Accessories: Provide a range of scaffolding accessories that can be customized, such as safety features, platforms, and access points.

4. Budget-Friendly Solutions: Offer options to customize products based on budget constraints without compromising safety or quality.

5. Project-Specific Customization: tailor the product to the unique needs of each project.

  • #
  • #
  • #
  • #







Kwikstage Scaffolding Package

  • #
  • #
  • #






Complete Guide to Kwikstage Scaffolding





Getting To Know Kwikstage Scaffolding


Kwikstage scaffolding is an adaptable, multi-purpose, steel scaffolding system popular in construction around the world for its dependability, durability, and simplicity. Kwikstage is designed to be easy and rapid to install and remove. This is where the name "Kwikstage" came from. It is widely used in the United Kingdom, Australia, and South Africa. However, it is popular and utilized all over the world.



Other widely used scaffolding systems

Ringlock Scaffolding System

Frame Scaffolding System

Quick Lock Scaffold System

Steel Prop System

Cuplock Scaffolding System

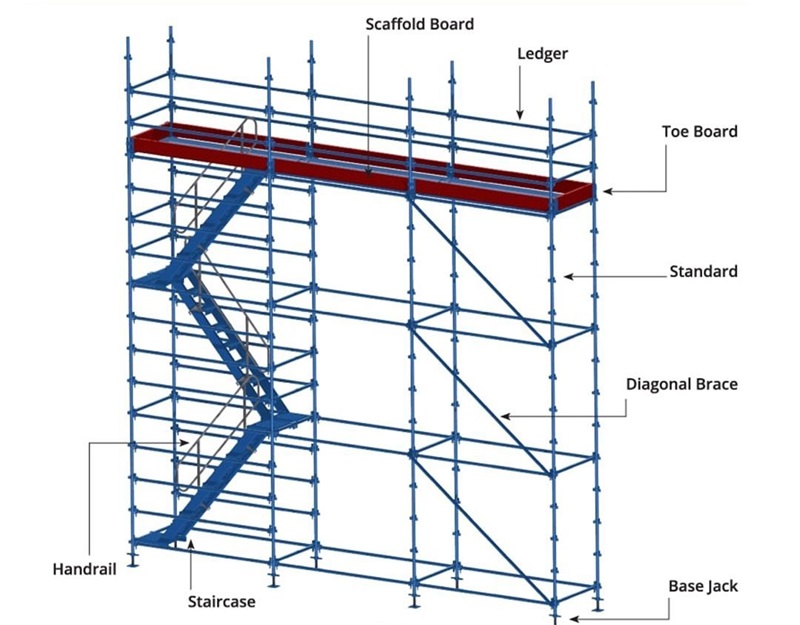

Common Accessories Used With Kwikstage Scaffolding



Standards (Verticals) - The vertical posts that provide the main support structure, with a series of "V" pressings at regular intervals to secure other components.

Ledgers - Horizontal components which link between the standards, offering lateral support to the framework.

Transoms - Placed across the ledgers to support the scaffold boards or platforms. Provides additional support and strength to the working platform.

Base Plates - which are utilized to ensure the load is evenly spread out across the floor. Adjustable jack bases are used for achieving level scaffolding on irregular surfaces and ground.

Diagonal Braces - Employed for bracing the scaffold construction to avoid swaying, and to boost the tower's all around structural strength.

Scaffolding Boards/Planks - Constructed of wood or metal, providing workers with a sturdy and level surface.

Toe Boards - Found at the edge of the working platform to help avoid items or tools from dropping off.

Guard Rails and Safety Barriers - Set up around the working platforms during scaffold installation to protect against falls.

Access Ladders - Securely fixed ladders which provide safe access to the several floors of the scaffolding.





Kwikstage Scaffolding Standard Size


There is no standard size for Kwikstage scaffold systems, but Kwikstage scaffolding components are manufactured in standard sizes that are easy to be assembled to develop the right system. Kwikstage Scaffolding Standard Size Some of the key components of the Kwikstage scaffold include:



Standards

  • The standards are the vertical and come in various lengths. They will be of different scaffolding heights. The common sizes are 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, and 3.00m. Each vertical length has a series of V-pressings at 500mm centers to accept the ledgers and transoms.

Ledgers

  • The horizontal members or ledgers distribute the load. The ledgers come in four standard lengths and will create a scaffold bay width when used in multiples. The standard lengths are 0.7m, 1.2m, 1.8m, and 2.4m.

Transoms

  • Transoms support the scaffolding boards and are also available in various lengths to match the scaffold width. Common sizes are similar to those of ledgers, ensuring compatibility.

Base Jacks

  • The base jacks are usually 36.5mm in diameter. They are used to allow for height adjustment and leveling of the scaffold, and the length can vary.

Diagonal Braces

  • The lengths will be as required for the specific bay dimension they are bracing.

Boards/Planks

  • Scaffolding boards are typically 38mm thick, 225mm wide, and lengths will align with the scaffold length (1.2m, 1.8m, 2.4m, etc.)







How to install Kwikstage Scaffolding


Installing Kwikstage scaffolding involves a systematic process to ensure safety and structural integrity. Below is a general guide on how to install Kwikstage scaffolding.



1.Position the base jacks accurately.

2.Install the Kwikstage standards onto the positioned base jacks.

3.Link the Kwikstage standards using Kwikstage ledgers.

4.Insert Kwikstage transoms amidst the Kwikstage standards.

5.Lay down Kwikstage battens atop the scaffold transoms.

6.Fine-tune the base jack to align the Kwikstage ledgers and transoms evenly.

7.Affix Kwikstage diagonal braces throughout the Kwikstage bays.

8.Add a second tier of Kwikstage ledgers and transoms.

9.Deploy a second tier of Kwikstage boards.

10.Install Kwikstage toe boards around the four edges of the scaffold board platform.

11.Construct additional Kwikstage uprights and interconnect them with horizontals, transoms, and boards.







Project Experience Of Kwikstage Scaffolding


1. Construction Sites

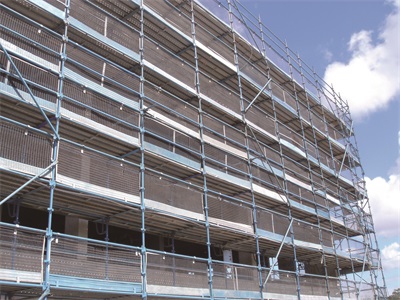

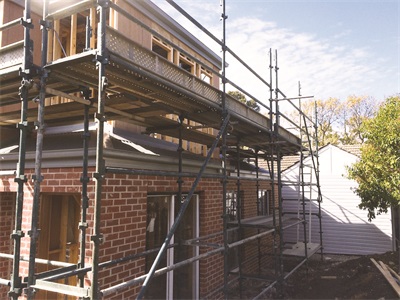

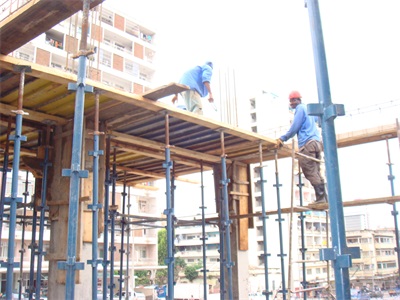

Building Construction - Kwikstage scaffolding is often used by construction workers on buildings of all sorts for work at different heights. It is appropriate for both residential and commercial projects.

Maintenance and Repairs - For buildings being repaired, maintained, or refurbished, Kwikstage scaffolding offers safe access to the parts of both the interior and exterior of a structure that need work.

Facade Work - Kwikstage scaffolding can be extensively modified to fit a building or portion of a building's facade. This could be for exterior finishes, plastering, or painting, providing access for workers.

  • #
  • #
  • #





2. Industrial Applications

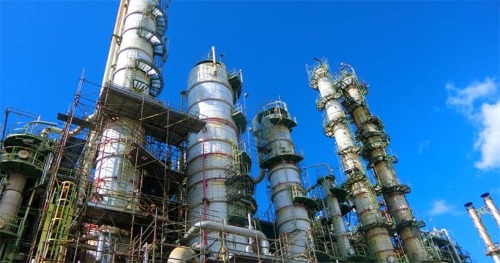

Refineries and Factories - Maintenance and installation are common in industrial environments, and Kwikstage scaffolding is used where structural elements are frequently serviced or altered.

Power Plants - In power generation (and other) plants, scaffolding is required to complete maintenance on boilers, machinery, and many other pieces of equipment.



3. Infrastructure Projects

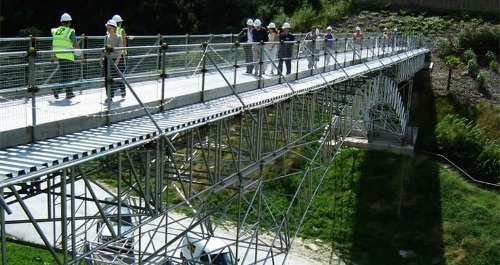

Bridge Construction and Maintenance - It is often necessary for the scaffolding to be able to fit around complex geometries, and as Kwikstage can be easily assembled in various configurations it is often used for bridge building.

Roadworks and Tunnels - It is a regular sight to find Kwikstage scaffolding used in the construction and maintenance of roads. It is also essential in tunnel building where the space can be limited.





Why Choose AJ Building?


Quality and Innovation

We are dedicated to producing the highest quality scaffold particularly our Kwikstage, as it is a key product. Using the best materials available, that meet the industry benchmarks, we also continually research and develop our product range to ensure it is durable, safe and easy to use.



Product Range

Our extensive range of scaffold products can be used in a wide variety of construction, industrial, event staging and also temporary structure environments. As well as our Kwikstage system we also provide formwork, ringlock scaffold, tube and fittings as well as a range of accessories. Flexible, adaptable and designed to be used in a wide variety of applications and projects.



Safety and Compliance

Safety first - our products are tested and comply with all relevant regulatory and industry standards. We provide all necessary training and assistance to ensure safety at all times and always adhere to the right quality and local standards for our scaffolding systems.



Customer Service - We focus on our clients, from the time when they choose our product up to after-sales. Reach out to us for all your scaffolding needs ranging from scaffolding systems, sales, installation and maintenance. Our customer service staff stands out the most.



Competitive Pricing

We understand the need for cost control over your project, and therefore we offer competitive pricing with no sacrifice to quality and safety. We guarantee the best return for your investment.



Buying your scaffolding equipment from AJ Building means you have a supplier that deeply cares about the success of your project. Our relentless pursuit of quality, safety, innovation and outmost customer satisfaction ensure that your projects get all the support they can from the ground. For unmatched scaffolding solutions, choose our team for your next project. Let us together build safe and build efficiently.









FAQ


Q:How does Kwikstage Scaffolding differ from other scaffolding systems?

A:Kwikstage Scaffolding is characterized by its unique wedge locking system, which allows for quick and secure connections between components without the need for nuts and bolts. This makes it faster to set up and dismantle compared to traditional scaffolding systems.



Q:Is Kwikstage Scaffolding safe to use?

A:Yes, when properly assembled and used according to safety guidelines and regulations, Kwikstage Scaffolding is safe. It provides sturdy support for workers and materials at different heights.



Q:Can Kwikstage Scaffolding be used for both residential and commercial projects?

A:Yes, Kwikstage Scaffolding is suitable for a wide range of projects, from residential housing construction to large-scale commercial and industrial applications.
