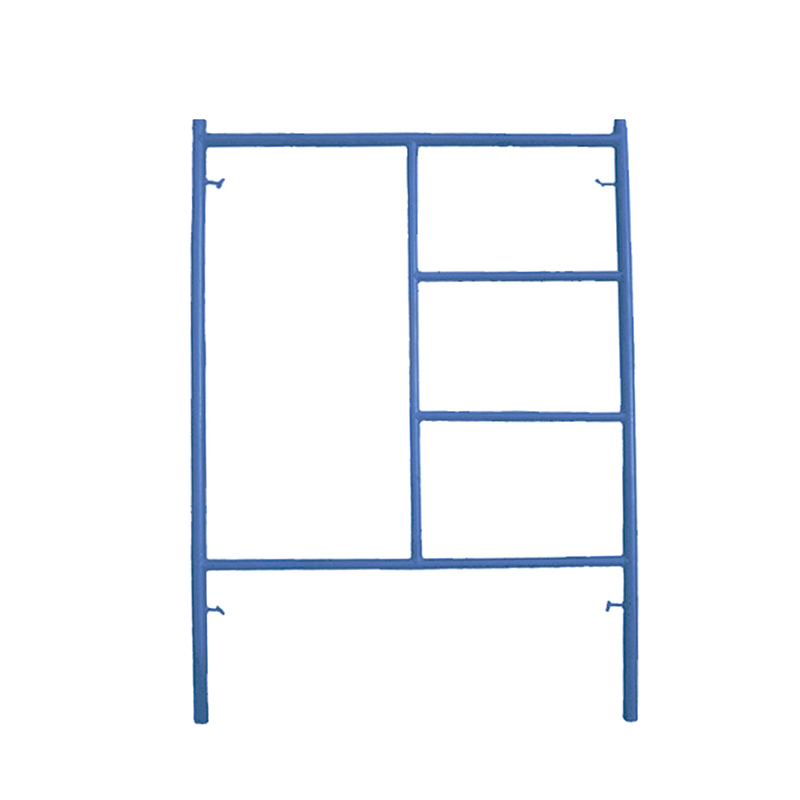

The scaffolding frames are designed with specific issues encountered in normal scaffolding frames in mind, including deformation, incompatibility with specifications, and early rusting. The scaffolding frames are made of high-tensile steel tubing, Q235/Q345. All the components of the scaffolding frames are designed and optimally engineered to guarantee maximum safety. Specifically, the frames are designed to prevent lock misalignment and weld failure under maximum load. Thus, it can be used for high-rise commercial masonry contracts, complex and demanding infrastructure renovation, and other arduous industrial applications. The scaffolding frames provide maximum structural integrity and improve work site efficiency greatly.
Technical Specifications
As a direct OEM/ODM manufacturer with flexible production lines, we support full parameter customization based on engineering drawings, architectural blueprints, or physical samples:
|
Customization Parameters |
Standard Industry Grade |
Heavy-Duty Industrial Customization |
|
Frame Dimensions |
5' x 6'4" (Walk-Thru), 5' x 5', 5' x 3' |
Tailored precisely to your blueprints up to ± 0.5mm |
|
Main Tube OD & Thickness |
ϕ42.7mm*2.4mm(Gauge 13) |
ϕ48.3mm*3.2mm/ Custom heavy gauges |
|
Inner / Brace Tubing |
ϕ25.4*1.6mm |
ϕ32mm*2.0mm or specific regional standards |
|
Lock System Options |
Drop Lock, Flip Lock, Fast Lock |
V-Lock, Snap Lock, Slide Lock (100% market-compatible) |
|
Steel Grade Material |
Q235 (Yield Strength ≥ 235MPa) |
Q345 / S355 High-Strength Steel for massive structural loads |
|
Surface Finish |
Architectural Powder Coating |
Hot-Dipped Galvanized (HDG, Zinc Thickness ≥85µm / EG |
Why Choose Our Custom 5 ft Scaffolding?
In high-volume B2B procurement, identifying a premium supply chain requires looking beyond the unit price to evaluate industrial consistency. Here is how our direct-factory capabilities outmatch standard trading options:
100% Intermateability Guaranteed - Our high precision CNC Machining and best tooling dies guarantee that our 5 ft frames are 100% intermateable with the mainstream North American standard profiles for the hole spacing, lock position, and the coupling pin size. This means that they will intermate with your existing equipment without a problem.
Frames ARE Robotic & Certified Welded: ALL of the joints on our 5 ft frame(s) are either robotically welded or Senior Welder with 10+ years of welding experience that utilizes the CO2 Gas Shielded process (deep penetration & zero porosity) to create a welded joint that far exceeds the typical load bearing capacity of said joint by more than 25%.
Rigorous Regulatory Compliance: Our scaffolding is fully certified to comply with or exceed ANSI/SSFI SC100-5/05 and OSHA safety standards for scaffolding. Prior to dispatch, each batch of scaffolding is put through its paces in our in-house testing facility to ensure the critical 4:1 safety factor is met.
Full Raw Material Traceability: We source our steel exclusively from top-tier, state-owned steel mills. Every shipment comes with an authentic Mill Test Certificate (MTC), strictly rejecting recycled steel or substandard thin-walled tubing.
Engineered Application Scenarios
Heavy-Duty Construction Projects - Engineered for high turnover & rough handling on site. Heavy-Walled, Hot-Dipped Galvanized 5ft Frame. Long Lasting Equipment 2 to 3 times longer than standard equipment.
Masonry & Drywall Installation: Our custom-made 5ft Walk-Thru scaffolding frames have been specifically designed to provide the ultimate in access and comfort for the installation of masonry and drywall products. They provide maximum clearance, unobstructed access, and the ultimate working heights for a frame of this length, allowing for increased material handling and subsequent site installation.
Industrial & Marine Environments: For high-salinity, high-humidity coastal or chemical projects, we provide specialized scaffolding with an ultra-thick zinc layer ($>85\mu\text{m}$) to reliably withstand severe chemical and atmospheric corrosion.
FAQ
Can your 5 ft scaffolding frames be mixed and matched with existing standard market frames?
- Yes, absolutely. As a specialized OEM manufacturer, we maintain an extensive database of international scaffolding profiles. Prior to production, we verify your exact lock types (e.g., Drop Lock or Flip Lock) and your center-to-center pin spacing (such as 4' or 27.75"). Precision CNC molds guarantee that our products are 100% intermateable with your current inventory.
What specific customization services do you provide as a direct factory?
We offer comprehensive OEM/ODM customization, including:
Dimensions & Structures: Tailored frame heights, widths, or ladder rung steps;
Tube Thicknesses: Upgrading wall thicknesses from Gauge 14 down to heavy-duty Gauge 11;
Brand Identification: Custom embossing/stamping your logo onto the steel tube, and applying proprietary powder coating colors for asset tracking and theft prevention;
Component Bundling: One-stop custom matching with cross braces, leveling jacks, and casters.
