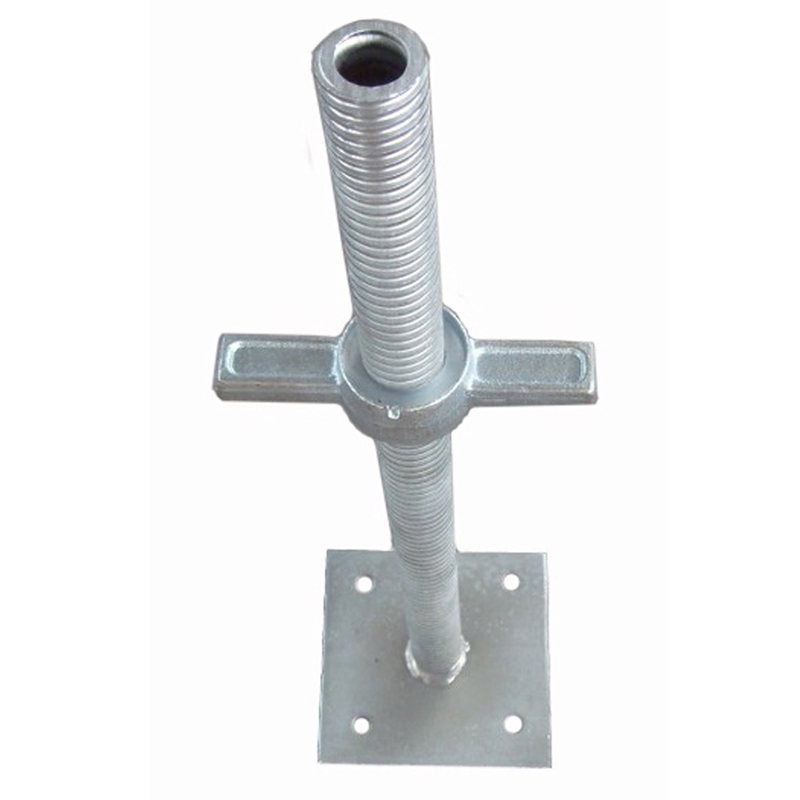

China Supplier Scaffolding Hollow Base Jack

• Leveling Scaffolding

  This is its main function. On uneven ground, the hollow base jack helps workers adjust the height of individual scaffolding legs, ensuring that the entire structure is level and stable.
• Support and Load-Bearing

  It acts as a base support to safely transfer the weight of the scaffolding structure, workers, and materials to the ground.
• Versatility

  The hollow base jack is widely used in various scaffolding systems, including Ringlock, cup lock, Kwikstage, Quicklock, frame and pipe systems.

Specifications

As a powerful supplier in China, our products are strictly produced by EN 74 standards, tested by SGS, and have ISO9001:2000 certification:

• Material: Made of high-strength Q235, Q345 carbon steel, durable and strong load-bearing capacity.
• Dimensions: Optional screw diameter (e.g. 34 mm, 38 mm, 48 mm), optional length (e.g. 400 mm, 600 mm).
• Base plate: The size is 150x150 mm. Some base plates are pre-drilled for fixing to the mud box or base plate for enhanced safety.
• Load capacity: Failure load at 150 kN for 32 mm, 34 mm, and 38 mm hollow base jacks. 200 kN for the Solid Basejack 35mm. Always refer to the manufacturer's specifications.
• Surface treatment: galvanized (electro-galvanized or hot-dip galvanized) or painted to enhance corrosion resistance and extend service life. Customized colors are available.

Applications



¤ Formwork support system: Provides precise vertical support for the formwork to ensure the flatness of concrete pouring.

¤ Temporary support structure: Provides stability as a temporary support in large projects such as bridges and tunnels.

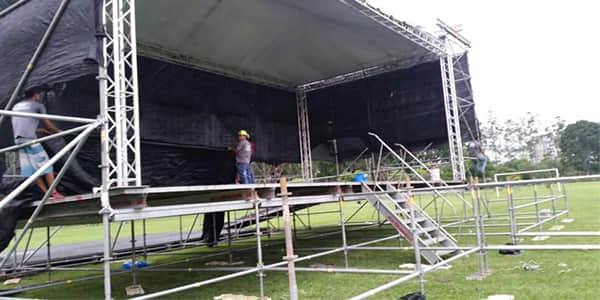

¤ Stage construction and stands: Provide a stable support foundation for event venues.
