Scaffolding is an integral part of construction and maintenance projects, providing access to elevated work areas. Understanding the weight capacity of scaffolds is not only crucial for safety but also for the success of any project. In this article, we'll explore the factors that influence scaffold weight capacity, the types of scaffolds and their load limits, safety measures, and more to help you determine how much weight a scaffold can hold.

Types of Scaffolds and Their Weight Capacities

Scaffold weight limits vary depending on the type and intended use. Below are some common scaffold types and their typical load capacities:

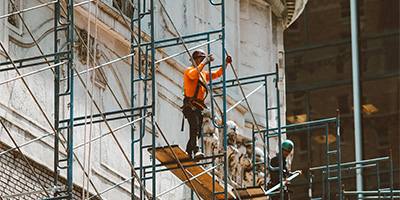

1. Supported Scaffolds (Frame Scaffolds)

• Description: These are the most common scaffolds, consisting of a framework supported by vertical posts.

• Weight Capacity: Typically rated for light-duty (25 lbs/sq ft), medium-duty (50 lbs/sq ft), or heavy-duty (75 lbs/sq ft) loads.

• Use Case: Ideal for construction, masonry, or painting projects.

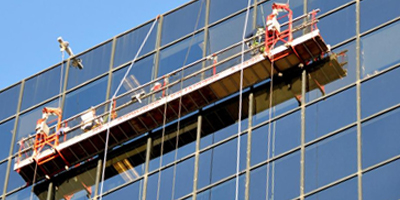

2. Suspended Scaffolds

• Description: Hung from ropes or cables, often used for high-rise building maintenance or window cleaning.

• Weight Capacity: Varies widely, from 250 lbs to 1,000 lbs, depending on the platform size and suspension system.

• Use Case: Best for tasks requiring access to tall structures.

3. Mobile Scaffolds

• Description: Equipped with wheels for easy movement, often used in indoor or small-scale projects.

• Weight Capacity: Generally lower, ranging from 500 lbs to 1,500 lbs, due to mobility constraints.

• Use Case: Suitable for maintenance or repair work in confined spaces.

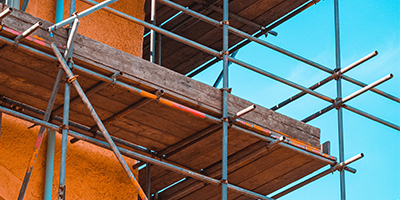

4. Tube and Coupler Scaffolds

• Description: Customizable scaffolds built with tubes and clamps, offering flexibility in design.

• Weight Capacity: Can be engineered for heavy-duty loads, often exceeding 75 lbs/sq ft when properly designed.

• Use Case: Used in complex or large-scale construction projects.

Safety Standards for Scaffold Load Capacity

To ensure safety, scaffold weight capacities are regulated by standards such as:

• OSHA (U.S.): Requires scaffolds to support at least 4 times the intended load without failure. For example, a scaffold rated for 500 lbs must withstand 2,000 lbs in testing.

• BS EN 12811 (Europe): Specifies load classes ranging from Class 1 (0.75 kN/m²) to Class 6 (6 kN/m²), depending on the scaffold’s purpose.

• AS/NZS 1576 (Australia/New Zealand): Similar to OSHA, mandates a safety factor of 4:1 for load-bearing components.

Always check the manufacturer’s specifications and local regulations before loading a scaffold.

Scaffold Weight Capacity Is Influenced By Several Key Factors:

Scaffold Type and Design

• Different types of scaffolds have varying weight capacities based on their design and intended use. Frame scaffolds, tube and coupler scaffolds, and system scaffolds all have unique load-bearing capabilities.

Material Used in Scaffolding

• The materials used in constructing the scaffold play a significant role in determining its load capacity. Steel scaffolds typically have higher load capacities compared to aluminum or wooden scaffolds.

Configuration and Setup of the Scaffold

• The way the scaffold is configured and set up, including the number of levels, bracing, and additional support like outriggers, can affect its weight capacity. Proper setup according to manufacturer guidelines is essential.

Load Distribution and Categories

• Scaffolds must support two types of loads: live loads (people, equipment, materials in use) and dead loads (the weight of the scaffold itself). Properly distributing these loads is critical to avoid overloading.

How To Determine Whether The Scaffolding To Meet The Required Load Capacity

• You should first decide what type of scaffolding you have on site. Different types of scaffolding have different load capacities. There are several common types of scaffolding to choose from, such as frame scaffolding, tubular and clamp scaffold, mobile scaffolding, and others, and selecting the proper type of scaffolding for the job is a must.

• Check the manufacturer's load description. The scaffolding manufacturer will have a rated load description in the user manual to tell you the weight per square foot or square meter the scaffolding is rated to hold. Always read and follow all manufacturer information before using any scaffolding.

• Look over the scaffolding for any deficiencies in any of the components. It is very important that all components of the scaffolding are free of defect and are in good shape. Cracking, deformations, or corrosion can greatly impact the scaffolding's load carrying capability. If the scaffolding cannot be visually inspected then hire a trained inspector to do it and ensure the scaffolding is safe.

• Have the scaffolding professionally evaluated. If the project you are working on has a high level of activity, or contains more than usual risk, you should consider hiring an engineer to inspect the scaffolding and determine the load capacity and to make certain it is safe.

Formulas For Scaffolding Load Capacity

When it comes to the calculation of the scaffolding capacity, one uses the following formula:

Q = P × A

Q = the overall capacity of the scaffold in kilograms or pounds;

P = maximum load carrying capacity in kg per square meter or lb/sq ft which the manufacturer of the scaffold must provide;

A = the whole area of the scaffold platform in square meters or square feet.

Tips for Safe Scaffold Use

1. Inspect Regularly: Check for damaged components, loose connections, or unstable ground before use.

2. Distribute Weight Evenly: Avoid concentrating heavy loads in one area of the platform.

3. Use Guardrails and Fall Protection: Ensure workers are protected from falls, especially on high scaffolds.

4. Train Workers: Provide training on scaffold safety, load limits, and proper usage.

5. Avoid Overloading: Never exceed the scaffold’s rated capacity, as this can lead to collapse or injury.

Common Mistakes to Avoid

Avoiding these common mistakes is crucial when working with scaffolds:

• Overloading scaffolds beyond their weight capacity.
• Neglecting proper scaffold setup and bracing.
• Failing to follow safety precautions and regulations.

Conclusion

     Understanding how much weight a scaffold can hold is essential for the safety and success of any construction or maintenance project. By considering factors like scaffold type, materials, setup, and compliance with safety standards, you can ensure that your scaffold operates within its designated weight limits, providing a secure and efficient work environment.

FAQ

Can I exceed the weight limit temporarily?

• No, exceeding the weight limit of a scaffold, even temporarily, can compromise safety and lead to accidents. Always stay within the specified weight capacity.

Are there regulations for scaffold weight limits?

• Yes, there are safety regulations and standards that govern scaffold weight limits. Compliance is essential to ensure a safe work environment.

What should I do if I suspect a scaffold is overloaded?

• If you suspect a scaffold is overloaded, immediately remove excess weight, and do not use the scaffold until it has been inspected and deemed safe by a qualified professional.
