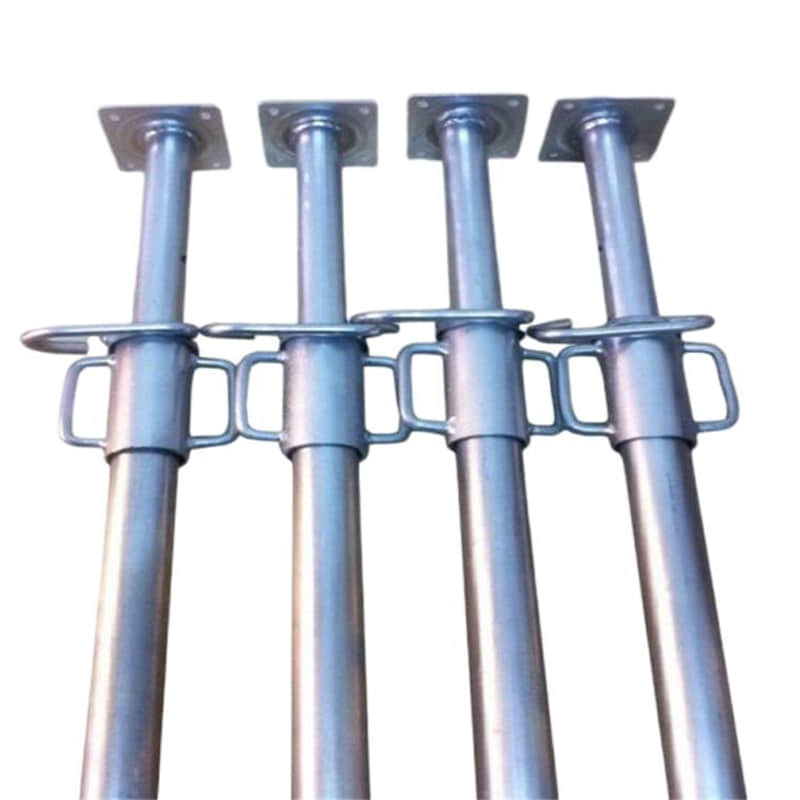

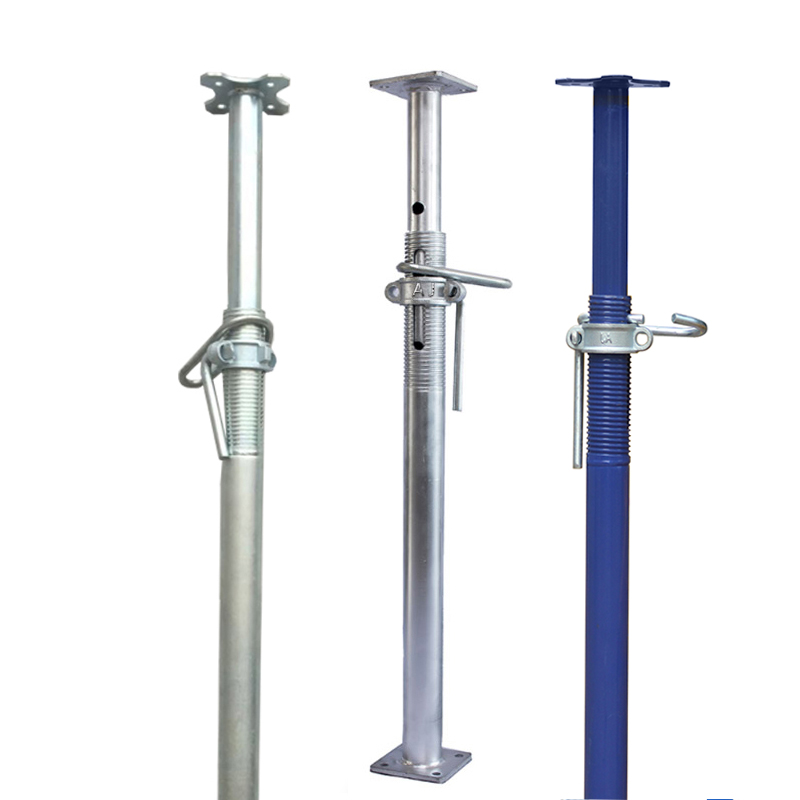

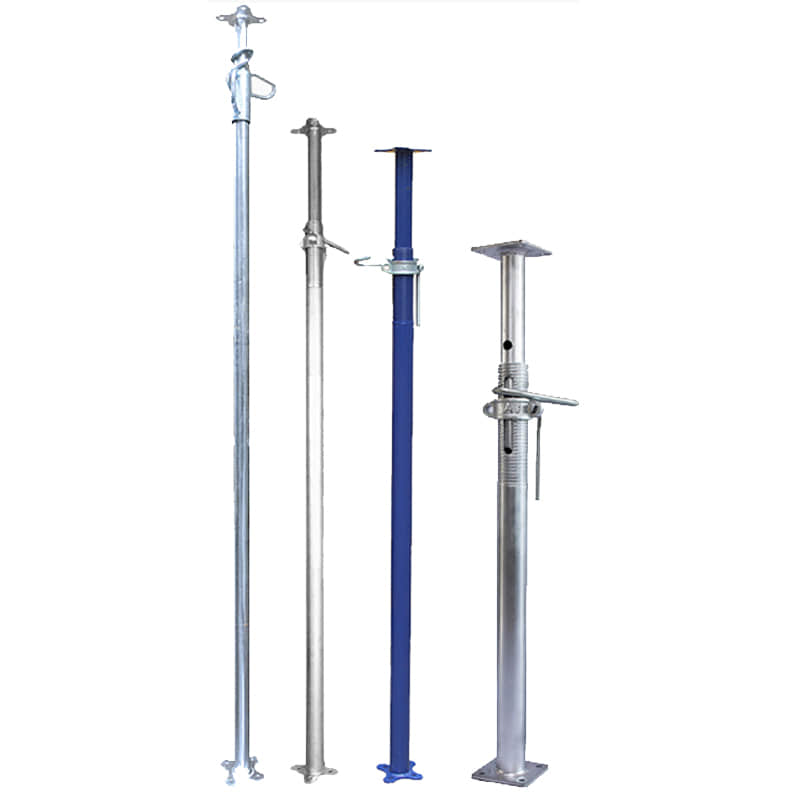

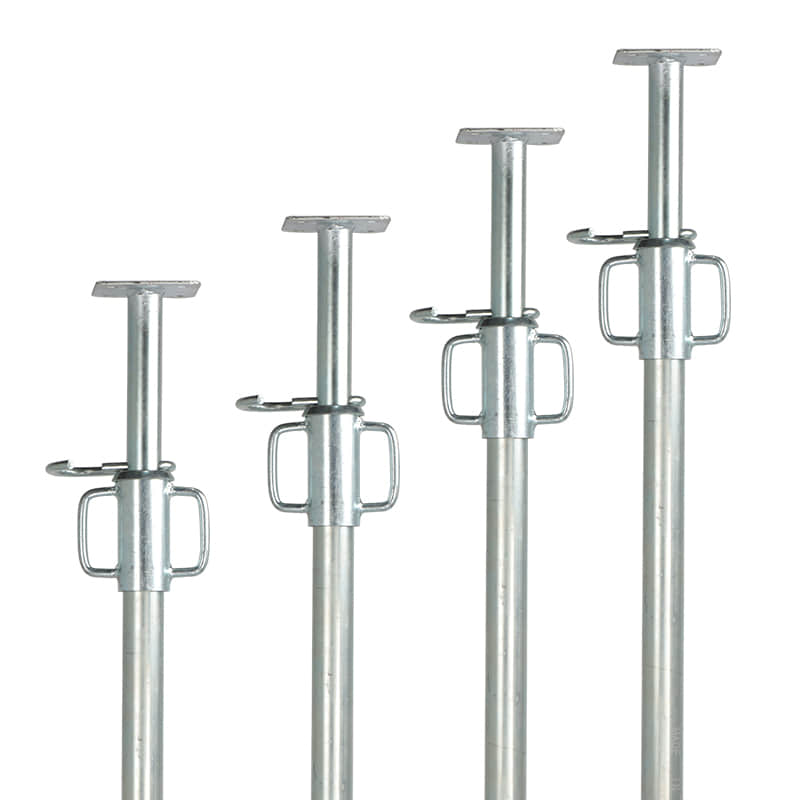

Size 1 Acrow Props Manufacture
A Size 1 Acrow Prop is a widely used construction tool designed for temporary support in building projects. Acrow props are adjustable telescopic steel props, typically utilized for supporting formwork, ceilings, walls, or other structural elements during construction or renovation.
AJ building can customize the size, thickness, surface process, etc. of acrow prop for you. If you are looking for acrow prop products, please contact us!
Size And Load
A standard acrow prop size can support a 73.8KN load at 1.76m. If the telescopic adjustable formwork prop is extended to 3.13m, you can support 38.5 KN to overhead load. We can design you if you need heavier duty than this standard acrow prop. Lightweight acrow prop size 1# if available if requested. Lightweight acrow prop saves the cost of acrow prop.
The standard size of acrow prop is 1.76m to 3.13m, the inner tube is 40mm in diameter and the outer tube is 60mm in diameter. If your project requires products of other sizes, we can customize them for you.
Features Of Number 1 Acrow Props
-
Robust Manufacturing
The Acrow prop has been constructed of high-grade steel and designed for prime usage on construction jobs or elsewhere in the trade. The prop will function properly in a high-stress environment for an extended time span. -

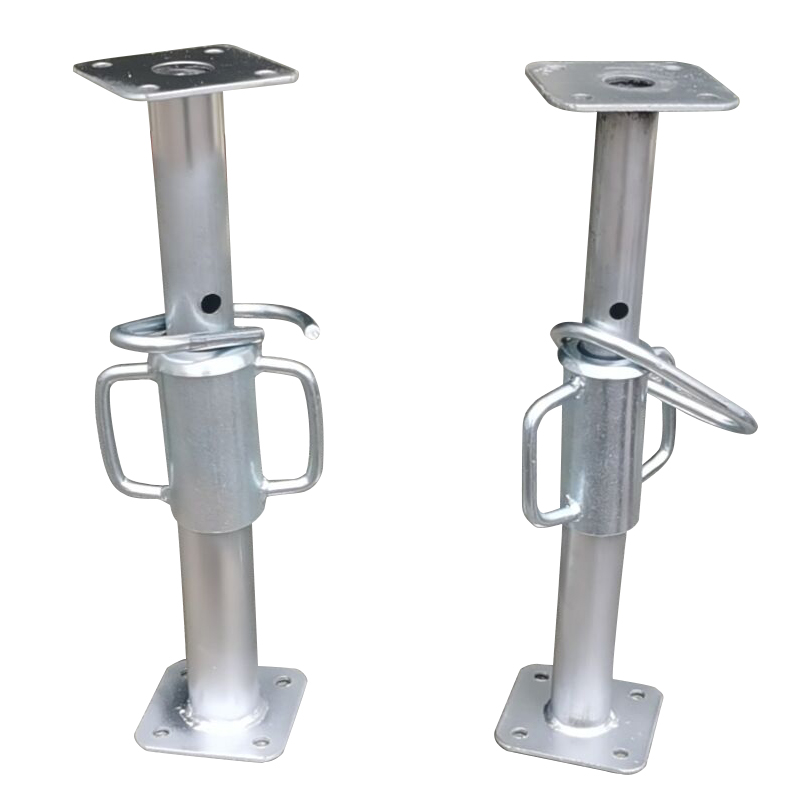

Threaded Collar And Pin
The Acrow prop is designed with a threaded collar and pin option for quick and easy height adjustment, with great specificity.
-
Versatile Use
These props can be used for many applications, including shoring up formwork for pouring concrete; shoring up wall sections during renovation; have the ability to hold up for beams-floors, or shoring up during a structural modification.
Applications:

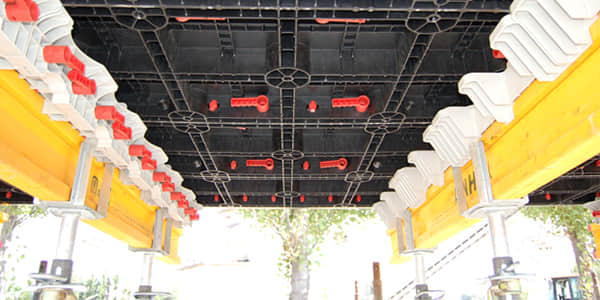

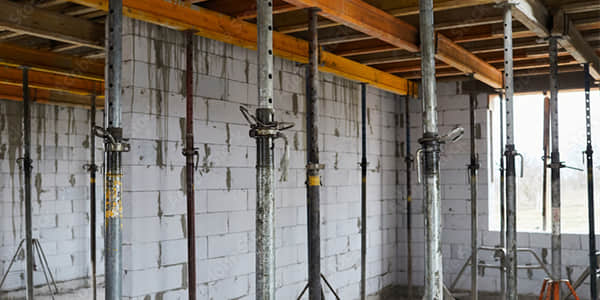

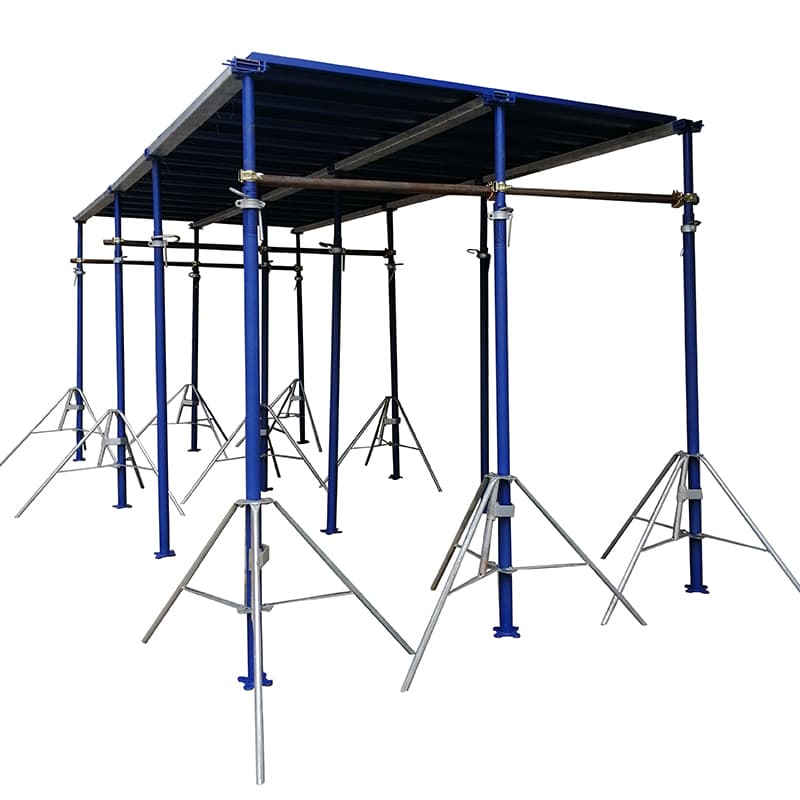

Supporting Formwork:
Size 1 Acrow props are commonly used to support formwork during the pouring of concrete in floors, walls, and ceilings. They provide temporary vertical support to ensure stability while the concrete sets.
Temporary Support:
When removing or installing beams or load-bearing elements, no 1 Acrow props offer reliable support. They hold ceilings and upper floors in place to prevent collapse or shifting during structural changes.

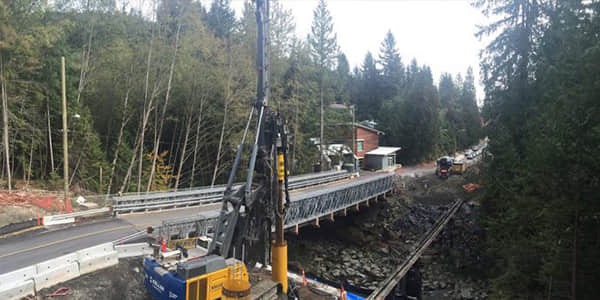

Bridge and Tunnel Construction
These props are often used to provide vertical support in bridge or tunnel construction projects, especially during the early stages of building when the structure is still unstable.
