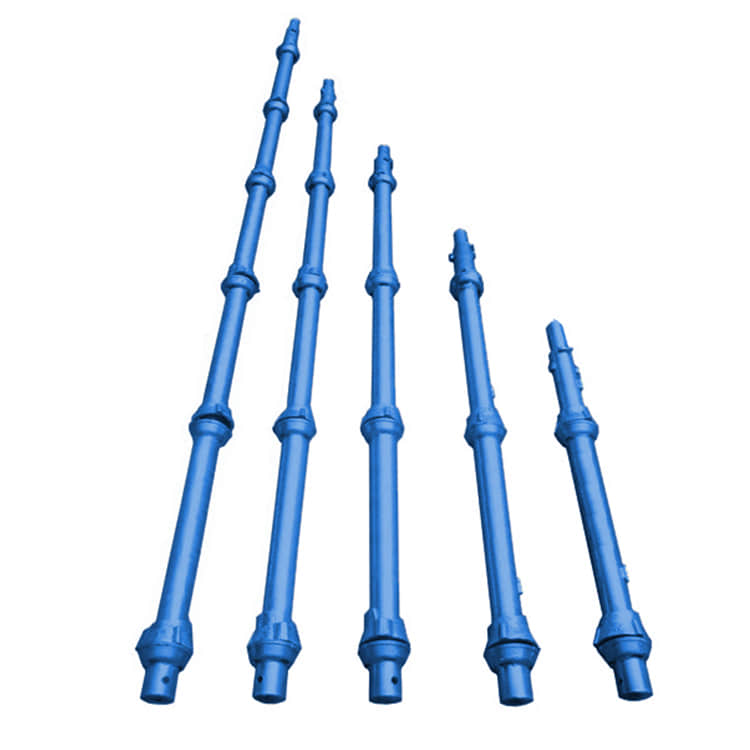

China Cuplock Scaffolding Standard Factory
The cuplock scaffolding standard is a vital component of the cuplock scaffolding system due to its versatility, strength, and quick modular nature. It ensures safety and stability for scaffolding structures and is designed for heavy-duty and general construction projects. Compression and tension are taken care of exclusively with high-grade steel for excellent load bearing and long service life.
AJ Building offers scaffold systems of various sizes and surface treatments, while also providing customized services. The products have passed the EN 12810 test standard and meet the EN 1090 and ISO 3834 CE Requirements.
If you want to know more styles of scaffolding, please contact us!
Cuplock Standard Key Features
Features of Cuplock Scaffolding
-
Corrosion Resistant
Made of high-quality steel, the surface is galvanized or painted to prevent rust and corrosion. -
Easy Installation
The unique cup-lock mechanism allows for quick installation and removal, no bolts or nuts are required.
Cuplock Scaffolding Standard Specification
To meet the needs of different engineering projects, we provide customized services such as material, length, thickness, diameter, surface treatment, etc. The following are the common specifications of the cup buckle scaffolding standard:
Material: Q235 or Q345 steel
Surface Treatment: hot-dip galvanizing, electro-galvanizing, Powder Coated or painting
Size: 0.5m, 1.0m, 1.3m, 1.5m, 1.8m, 2.0m, 2.3m, 2.5m, 2.8m, 3.0m, 3.5m
Welding Interval: 50cm
Thickness: 3.2mm or 4.0mm
Outer Diameter: 48mm
Cup Lock Scaffolding Standard Applications:
◆ Construction Sites : Suitable for high-rise buildings, bridges, and large-scale infrastructure projects.
◆ Industrial Maintenance: Ideal for plant maintenance and repair work.
◆ Facade and Interior Scaffolding: Versatile for both external and internal scaffolding needs.
