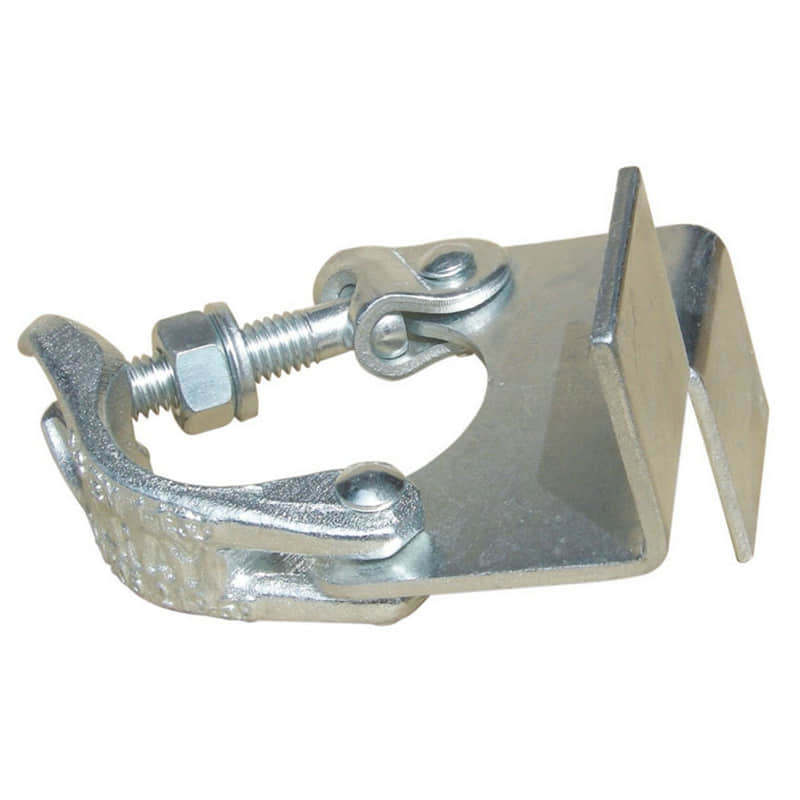

The Scaffolding Board Retaining Coupler (BRC) is a scaffolding component designed to prevent plank movement and wind lift whilst optimising the planks locking mechanism and fixed bolt position. The BRC prevents a major health and safety risk within scaffolding created by loose and flapping scaffold boards. Designed to handle the strenuous conditions found offshore and combat the harshest of corrosive environments, the BRC scaffold board coupler is of the highest quality and integrity and is ideal for use on any scaffolding project from a high rise residential to a commercial or offshore construction site.
Technical Specifications
|
Feature |
Standard Specification |
Factory Customization Options |
|
Compliance |
BS 1139 / EN 74-1 Class A |
Third-party lab testing (SGS/TUV) available |
|
Material |
High-Tensile Carbon Steel Q235B |
S235 / S355 grade steel for extreme loads |
|
Manufacturing |
Precision Pressed Steel |
Plate thickness: 4.0mm / 4.5mm / 5.0mm |
|
Surface Finish |
Electro-Galvanized (EG) |
Hot Dipped Galvanized (HDG) / Dacromet |
|
Compatibility |
48.3mm O.D. Scaffolding Tubes |
Custom diameters for specific regional pipes |
|
Bolt & Nut |
Grade 8.8 High-Strength T-Bolt |
Stainless steel bolts or anti-drop designs |
Why Source From Our Factory?
Structural Integrity & Material Traceability
Tensile tests are often left to the trader to organise and are only carried out once the product has been purchased and delivered. With the Metallurgical process included with our BRC Couplers, all lots of BRC Couplers are tensile tested in our fully accredited in-house laboratory. You can be certain our coupler dimensional specifications are accurate, as our couplers are precision moulded to a geometric tolerance of ±0.5mm, ensuring they will drive correctly.
2. Engineered for 10+ Years of Service Life
Our Hot Dipped Galvanization (HDG) process achieves coating thicknesses in excess of 60μm, ensuring all BRC clamp products achieve over 500 hours salt spray testing without evidence of red rust. Ideal for rental businesses and contractors alike, this heavier coating also lasts longer.
3. Agile OEM & Branding Capabilities
Logo Embossing - Emboss your company name or logo into the body of the product. The Custom Geometry of our design can be optimised to suit almost any board thickness. The Hook Depth can be set from the standard 50mm to lock in any thickness of timber board, from as little as 38mm for standard timber through to 63mm LVL. You can be 100% confident that every board will be properly gripped and processed.
FAQ
What is the primary safety function of a Board Retaining Coupler (BRC)?
The BRC coupler is designed to secure scaffold boards to the transom, preventing them from tipping, sliding, or being lifted by strong winds (wind-uplift). It is a mandatory safety component under international regulations like NASC SG4, essential for preventing falling object incidents and ensuring a stable working platform.
How do you identify a high-quality BRC clamp?
A professional-grade BRC is defined by three factors: First, Plate Thickness—it must be at least 4mm to prevent deformation under stress; Second, Bolt Grade—8.8 high-tensile bolts are required to prevent thread stripping; Third, Coating Uniformity—high-quality factory products feature a smooth, burr-free finish to protect workers' hands.
Do you provide samples for large-scale engineering projects?
Yes. As a direct manufacturer, we offer sample kits for structural testing and approval. We also provide full Mill Test Certificates (MTC) and compliance documentation to ensure your project passes all safety inspections.
