Before we get into the details of coupler, let's take a brief look at tube and connector scaffolding. This type of scaffolding is made up of metal tubes (usually steel or aluminum) and connectors, which are used to build a temporary support structure to support workers, tools and materials. Its biggest feature is that it can flexibly adjust the structure through different types of connectors to adapt to various complex construction needs. Compared with other scaffolding systems, tube and connector scaffolding is particularly prominent when customized design is required, and connectors are the core of achieving this flexibility.

What are Scaffold Couplers?

Simply put, connectors are mechanical devices used to securely connect two scaffolding tubes together. They are usually made of high-strength materials such as steel and are able to withstand the various loads and environmental conditions on the construction site. Connectors ensure the stability of the overall scaffolding framework by clamping or fixing the tubes, providing reliable support whether they are connected horizontally, vertically or diagonally.

In tube and connector scaffolding, connectors act like joints in the human body - they connect separate tubes into a whole, making the entire structure both strong and flexible.

What Are The Scaffold Coupler Types?

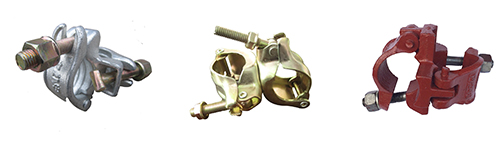

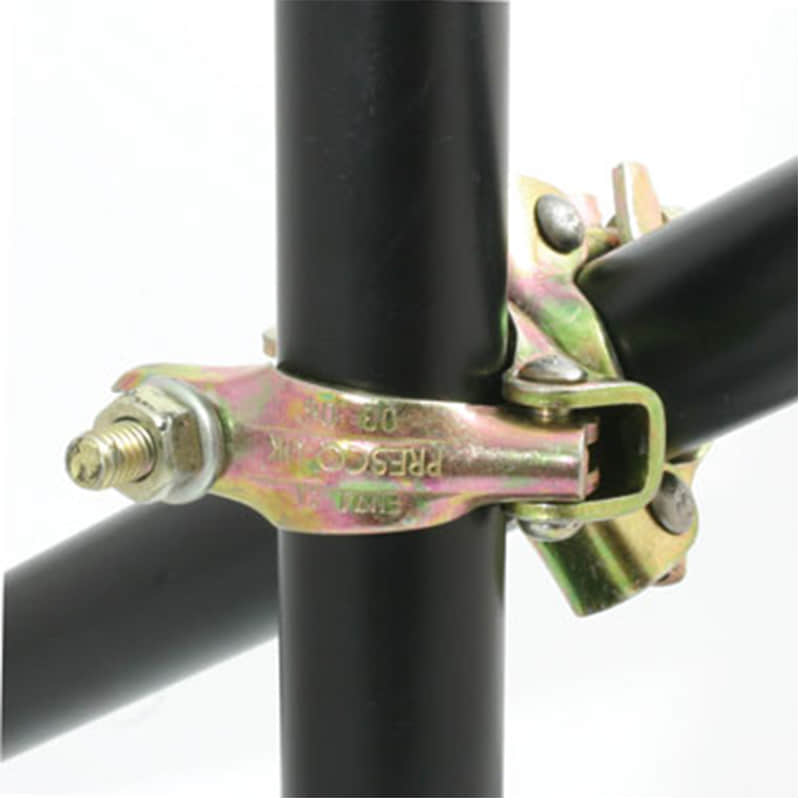

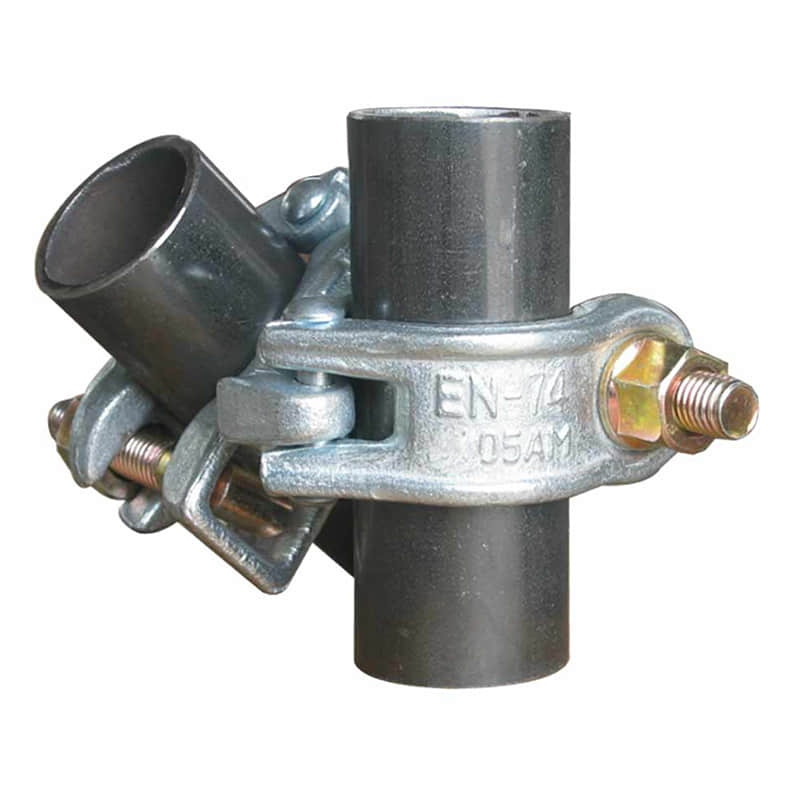

1. Scaffolding Swivel Couplers: Connect two steel tubes at an adjustable angle. The coupler itself can rotate 360 degrees, providing high flexibility.

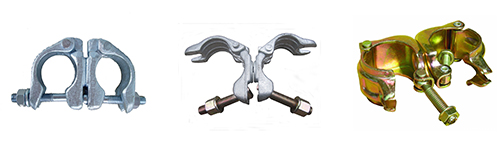

2. Fixed Beam Couplers: These couplers have a fixed angle, connecting two steel tubes in a straight line, offering better rigidity to the scaffold.

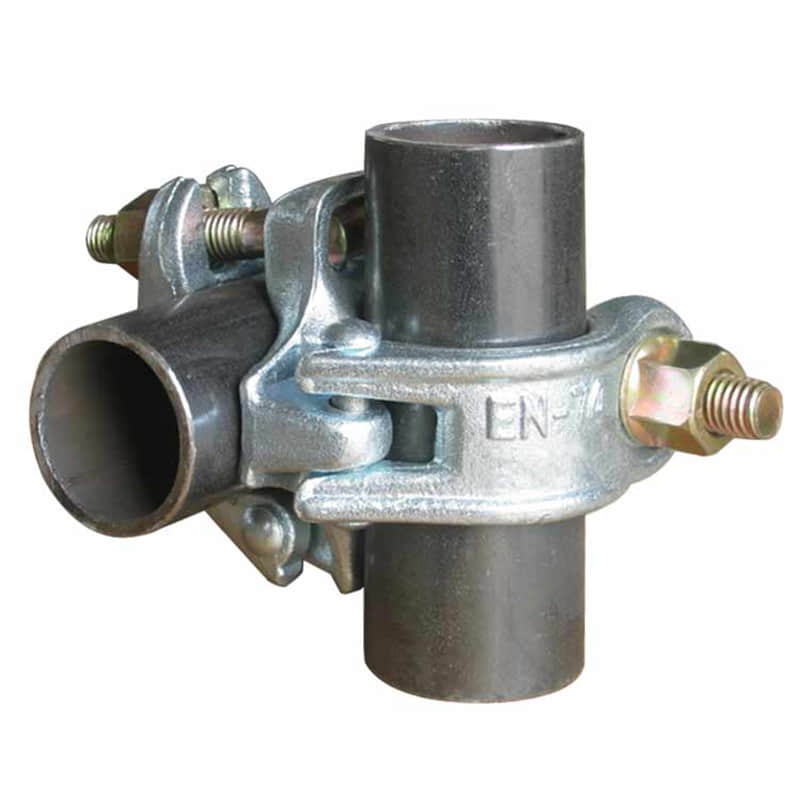

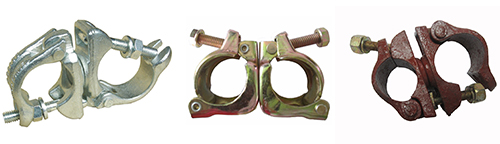

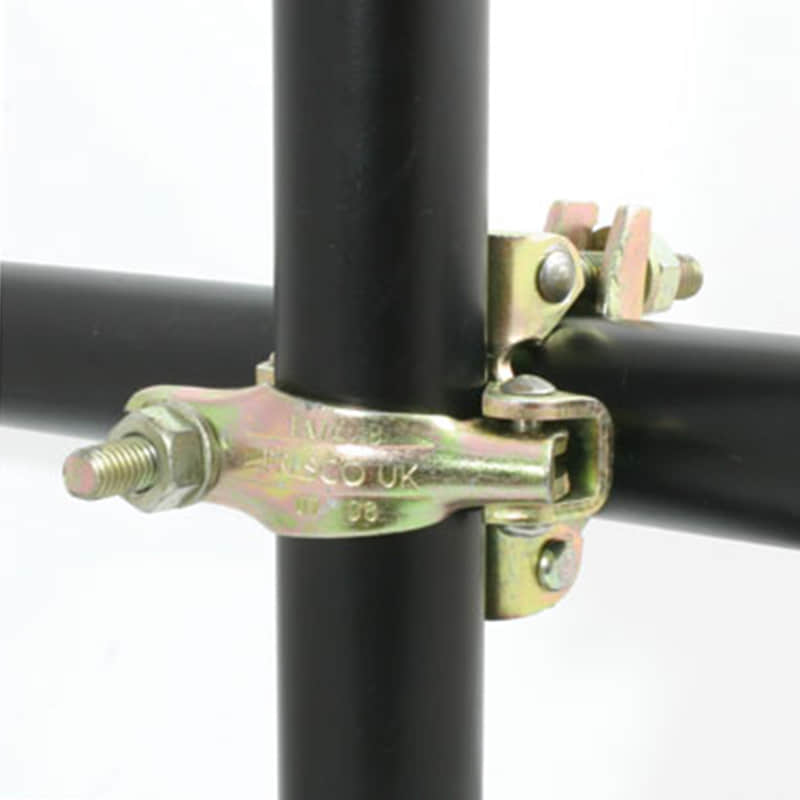

3. 90 Degree (Right Angle) Scaffold Clamp: Fixed at a 90-degree angle, these couplers connect two steel tubes, usually used in scaffold structures to create corners and intersections.

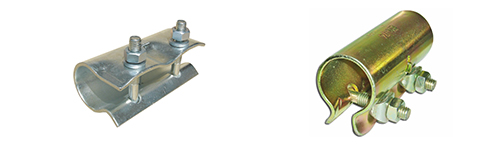

4. Sleeve Couplers: Used to connect two steel tubes, extending their length.

5. Clamp Couplers: Used to connect two rods by clamping them together through a locking mechanism.

6. Other Types scaffold Tube Couplers

• scaffolding putlog coupler
• Casting Sleeve Couplers

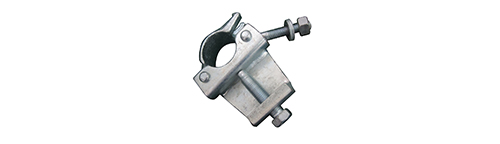

• Board Retaining Couplers
• Single Couplers

Advantages Of Purchasing Tube And Coupler Scaffolding

AJ Building offers couplers in different sizes and types of steel tubes, providing customized services to meet individual purchasing needs. They have the following advantages:

1. Greater Flexibility:

While modular scaffolding like ring lock scaffolding is widely used in construction, its dimensions and design are fixed upon purchase, lacking the flexibility to alter the scaffold configuration later. However, tube and coupler scaffolding is more flexible. It can be built on-site, allowing for perfect height and width adjustments for any job. All you need are the correct quantities of pipes, couplers, and any desired accessories. Each time, you receive a customized version.

2. Sturdiness and Stability:

The steel pipes provided by AJ Building are made from high-grade steel, excelling in toughness and strength. Even for constructing tall and large scaffolds, these robust steel pipes offer better load-bearing capabilities. When properly designed and constructed, there's no need to worry about scaffold collapse or breakage. If you lack experience in this area, you can contact us, and our professional team will assist you.

3. Better Transport and Storage Options:

Tube and coupler scaffolding is reusable, typically having a lifespan of 5-10 years. Compared to modular scaffolding, they have a smaller volume, making transportation more convenient. Couplers are smaller accessories, easier to store, and won't occupy much space in your warehouse.

Applications Of Scaffolding Tubes And Couplers

Construction Sites:

• Used for new building construction, renovation, and demolition projects.
• Ideal for complex structures where standard modular systems may not be suitable.

Industrial Maintenance:

• Provides access for maintenance and repair work in industrial settings, such as refineries, power plants, and factories.
• Can be erected around machinery and equipment without causing damage.

Bridges and Infrastructure:

• Suitable for the construction and maintenance of bridges, tunnels, and other infrastructure projects.
• Can be adapted to fit the unique shapes and requirements of these structures.

Event Staging:

• Used to construct temporary stages, platforms, and viewing stands for events and performances.
• Provides a flexible and stable solution for event setups.

Installation And Maintenance Of Couplers

While choosing high-quality fasteners is crucial, correct installation and post-maintenance should not be ignored. Here are some practical installation and maintenance suggestions:

Installation precautions:

• Make sure each fastener is firmly installed to avoid loosening or over-tightening.
• The fastener installation positions should be evenly distributed to ensure that the entire scaffolding is balanced.
• When installing rotating fasteners, pay special attention to whether their angles meet the design requirements to ensure that they provide the necessary support in the right position.

Regular inspection and maintenance:

• During the construction process, check the fasteners regularly to ensure that they are not loosened due to gravity or other external forces.
• If the fasteners are exposed to wind and rain for a long time, they should be regularly treated with rust prevention to avoid corrosion that affects the structural strength.
• After the project is completed, the disassembled fasteners should be cleaned and properly stored to avoid rust or deformation.

Safety Standards For Connecting Couplers

In order to ensure the safe use of scaffolding, international and regional organizations have set strict safety standards for the design and manufacture of connecting fasteners. For example:

• ISO 9001: This is the International Organization for Standardization (ISO) standard for quality management systems, ensuring that the production process and final quality of the product meet the specified requirements.
• EN 74: This is the European standard for scaffolding fasteners, which specifies the material, size, strength and durability requirements of the fasteners.

      In tube and Couplers scaffolding, couplers are the "glue" that transforms independent tubes into solid structures. Whether it is right-angle couplers, rotating couplers, sleeve couplers and joist couplers, each type plays a unique role in the construction of scaffolding. Understanding the definition, types and correct use of couplers will not only help improve construction efficiency, but also significantly improve site safety.

If you are a construction worker, scaffolding installer or related practitioner, I hope this blog can provide you with valuable information. Always remember: safety first, choosing the right couplers and following best practices are the key to ensuring the stability of the scaffolding.

If you would like more information, please contact us here.

FAQ

What Is Scaffold Couplers

• Scaffolding connectors are installed on scaffolding tubes to secure the posts. They connect inner posts to inner posts or inner posts to outer posts, secured using fixed or swivel fittings, depending on the structural application required for the scaffolding tubes and fittings.

What Are Three Types Of Couplers Commonly Used In Tube And Coupler Scaffold Systems?

• Scaffold Double Coupler (Right Angle Clamps) / Scaffold Swivel Coupler (Rotation Clamps) / Scaffold Single Coupler (Putlog)

What Is A Scaffold Tube?

• Tubes are usually made of steel or aluminum and are a traditional type of scaffolding.
