The selection process for scaffolding systems used in worldwide construction and infrastructure development requires more than logistics because it needs fundamental strategic choices. The selection process creates effects on labor expenses, extends construction duration, and impacts workplace security and business financial performance. The market operates under two main systems, which include modern Ringlock (Modular) Scaffolding and traditional Tube and Clamp (Coupler) Scaffolding.

The two systems maintain the same purpose of providing elevated access, yet they use different engineering methods and operate with different performance requirements. The guide performs an extensive evaluation to assist you in selecting between two systems that match your project needs and budget constraints.

1. Understanding the Fundamentals

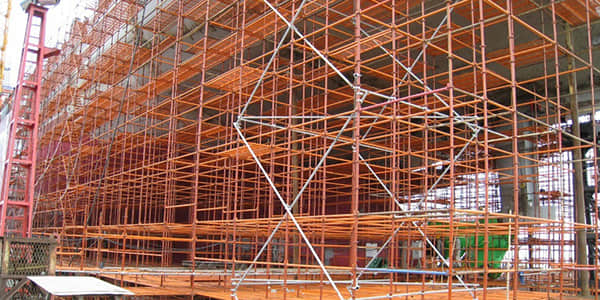

What is Ringlock Scaffolding?



Ringlock is a sophisticated modular scaffolding system. The main characteristic of this system includes a central "rosette" connector, which enables users to link eight different components (ledgers, braces, and transoms) through one wedge pin hammer strike. The system operates at its highest capacity while allowing users to construct it at maximum speed.

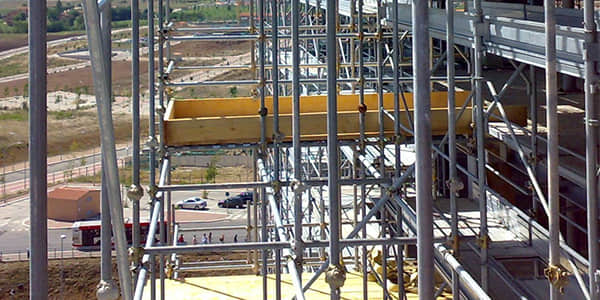

What is Tube and Clamp Scaffolding?



Often referred to as "traditional" scaffolding, Tube and Clamp consists of galvanized steel pipes joined together by various types of couplers (right-angle, swivel, or sleeve). The system provides unlimited adjustment capabilities because users can position the clamps anywhere on the pipe.



2. Speed and Labor Efficiency: The Time-Saving Factor

Time functions as a financial resource that engineers need to work with during their present-day projects. The two systems differ most significantly in their ability to construct and deconstruct facilities at different rates.

• Ringlock Scaffolding: The rosettes in this system provide pre-determined connection points, which eliminate the requirement for manual joint measurement and leveling operations. A team with advanced skills enables Ringlock system installation at speeds that cut down work time by 30% to 50% relative to conventional construction techniques.
• Tube and Clamp: This system is labor-intensive. A person needs to hand-place the coupler before using a wrench to secure it for connection. The process is slow and requires a higher level of specialized skill to ensure the structure is perfectly plumb and level.

3. Structural Integrity and Load Capacity

The process of handling heavy-duty masonry work, industrial maintenance, and large-scale shoring operations requires absolute reliability in load-bearing capacity.

• Engineering Precision: Ringlock components are manufactured to strict tolerances. The fixed geometry of the wedge-lock mechanism ensures that the load is distributed evenly across the vertical standards. The material works best for demanding uses that require maximum strength because it provides excellent structural support.
• The Human Factor: The strength of a Tube and Clamp system depends heavily on the torque applied to the couplers by the individual worker. Heavy loads on an under-tightened bolt will cause the friction-based joint to lose its grip.
• Technical Note: Ringlock systems operate at higher load capacities (kN/m²) than standard Tube and Clamp systems, which makes them the best option for complicated industrial settings, including refineries and power plants.

4. Versatility and Flexibility

Construction sites exist as irregular shapes instead of traditional rectangular forms. The project needs to be adaptable because it faces challenges from its piping system, its curved building design, and its irregular ground surface.

• The Strength of Tube and Clamp: This is where the traditional system shines. The clamps function as versatile tools that enable users to position them at any point along a pipe, thus creating customized solutions for irregularly shaped objects, confined areas, and historic buildings with unique architectural features.
• The Ringlock Solution: The Ringlock system provides users with modular functionality through its rosettes, which enable 45-degree and 90-degree attachment points for enhanced versatility. However, it still operates within fixed lengths (0.5m, 1.0m, 2.0m, etc.). The system requires "tube and clamp" hybrid sections for occasional use to overcome particular obstacles that block its route.

5. Comparative Analysis Table

6. Long-Term ROI: Cost vs. Investment

Organizations need to pick their most profitable option during procurement because they should avoid selecting the cheapest option.

1. The initial price of Tube and Clamp systems remains lower than other options. The raw materials (steel pipes and cast iron clamps) are less expensive than the precision-engineered rosettes of the Ringlock system.
2. The initial expense of Ringlock equipment leads to financial benefits because it decreases both workforce costs and delivery expenses, which result from executing multiple construction projects. The modular design of scaffolding parts enables better stacking, which results in reduced truck requirements for transporting the same quantity of scaffolding materials.
3. The site experiences regular losses of small couplers and bolts, which belong to Tube and Clamp systems, because these items disappear during construction operations. Ringlock components are larger and harder to lose.

7. Safety and Compliance

A well-respected construction organization operates through safety principles, which serve as its organizational foundation.

• Reliability: The Ringlock wedge-lock mechanism operates as a fail-safe system. Once the wedge is hammered in, the connection is rigid. The system reduces human error because it eliminates the requirement to adjust individual clamps out of the thousands needed.
• Standardization: Modern modular systems follow international standards, which include EN 12810/12811 and OSHA requirements for their design. The system operates with predictable patterns, which enables safety inspectors to confirm the construction quality of the build.

Conclusion

The selection between Ringlock, Tube, and Clamp systems depends on the exact requirements of your current project.

• Choose Ringlock if: Your organization handles big commercial construction projects, industrial maintenance work, and infrastructure development that require both fast project completion and high labor expenses. The efficiency and safety gains will provide a superior Return on Investment (ROI).
• Choose Tube and Clamp if: You are working on highly specialized, small-scale renovation projects with irregular geometries, or if you are in a region where labor costs are exceptionally low and the flexibility of "any-point" connection is mandatory.

The current development of the worldwide construction industry demonstrates its adoption of modular construction methods throughout its operations. Ringlock serves as an advanced scaffolding solution that enables businesses to expand their operations while keeping their facilities protected from potential dangers.

Ready to Optimize Your Next Build?

Your business partner selection becomes essential when you need to boost your inventory or when you require specific technical expertise for your upcoming projects. Our company provides scaffolding solutions of the highest quality, which follow engineering standards through its certified service operations.

Our technical team stands ready to create a personalized quote and perform cost evaluation services for your upcoming work initiative.

FAQ

Is Ringlock scaffolding compatible with Tube and Clamp components?

• Yes, they can be used together. Right-Angle Couplers and Swivel Clamps function as standard connectors that contractors use to connect traditional tubes with Ringlock standards for creating particular bracing arrangements and handling atypical architectural requirements. The load-bearing calculations need to consider the separate operational limits of these two systems.

The selection between these two systems depends on the weather conditions are present.

• In extreme weather conditions, Ringlock is often preferred. Its wedge-lock mechanism is less affected by ice, mud, or debris compared to the threaded bolts of traditional clamps, which can seize or become difficult to tighten/loosen in harsh environments. The fast speed of Ringlock enables construction teams to build the framework at a quicker pace which helps them protect the structure before severe weather conditions arrive.
