Size 3 Acrow Props Factory
A Size 3 Acrow Prop is a heavy-duty, telescopic steel tube support system. It consists of an outer tube, an inner tube that slides within, a robust collar with a threaded section, and a locking pin. This design allows for precise height adjustment within a specific range, with the pin providing a secure locking mechanism at desired intervals. They are essential for providing vertical support during structural alterations, renovations, or new construction projects.
Size 3 Acrow Props are durable and can be freely adjusted in height between 2.59 meters and 3.962 meters. The number 3 acrow props produced by AJ building strictly control product quality and comply with BS4074:1982 / BS5507-3:1982 standards.
Size 3 Acrow Props has a safe load capacity of 7kn to 35kn and is widely used in the construction industry for temporary support of walls, ceilings and trenches. If you are looking for a high-quality Size 3 Acrow Props product, please contact us.
|
Info |
Detail |
|
Closed Length |
2.59m |
|
Open Length |
3.962m |
|
Specification |
Q235 Steel |
|
Finish |
Galvanizing/powder coating |
|
Outer Diameter / Wall Thickness |
Inner Tube - 48mm / 3.0mm Outer Tube - 60mm / 3.0mm |
Features
- High-strength steel: Made of high-quality Q235 steel to ensure durability and safety.
- Adjustability: By telescoping the inner and outer tubes and locking the fixing pin, it can be adjusted to any height within its range.
- Anti-corrosion coating: The surface is coated with anti-rust paint to extend the service life and is suitable for various environments.
- Base and top plate: Equipped with a base and top plate to evenly distribute the load and reduce pressure on support points and supporting surfaces.
- Portability: Lightweight design for easy handling and installation, suitable for international transportation.
Applications
Size 3 Acrow Props are widely used in various temporary support situations:

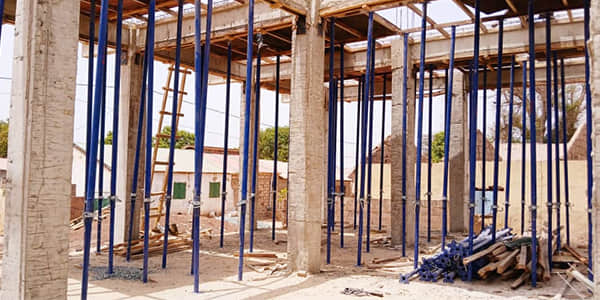

● Supporting ceiling joists, beams, and walls during structural alterations or renovations.
● Providing vertical support for concrete formwork (slabs, beams).
● Temporary propping during the installation of steelwork or precast concrete.
● Stabilizing structures after damage.
● Used in temporary scaffolding structures.
Surface Treatment Options

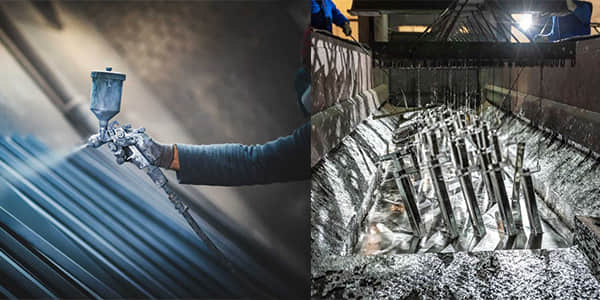

In order to make the service life of Size 3 Acrow Props longer, powder spraying treatment is generally carried out on the surface of the product. Our factory has fully automatic powder spraying machines and galvanizing equipment, which can customize the surface treatment of the product for you, such as pre-galvanizing, electro-galvanizing, and powder spraying treatment can be customized in different colors, such as blue, red, etc.
Explore Our Range of Adjustable Steel Props
We offer a full range of adjustable steel props to cover all your shoring needs:
