AJ Scaffolding offers a comprehensive line of structural beams to meet your stringent strength, weight, and durability requirements. Whether you need a standard W-beam, a high-capacity H-beam, or a specialized T-beam, we can provide it. We offer both steel and aluminum construction options, with the option of a galvanized finish, ensuring excellent corrosion resistance and long service life in a variety of environments.
Why Choose Our Structural Steel Beams?
- Superior Material Quality: Our steel beams are made of high-quality steel that meets international standards such as ASTM A992 and ASTM A572-50. This ensures that each beam has excellent tensile and yield strength, providing a solid and reliable framework for your building.
- Extensive product line: Whether you need standard I-beams or wider-flange H-beams with increased load-bearing capacity, we have it all. We stock a variety of sizes, weights, and lengths to suit a wide range of applications, from residential to large industrial buildings.
- Precise Customization Services: We can provide customized processing services such as precise cutting, drilling, welding, and surface treatment according to your specific drawings and requirements. This reduces on-site workload and saves you time and costs.
- Efficient supply chain: As an experienced steel supplier, we have a comprehensive inventory and logistics system. We are committed to on-time delivery to ensure that your project schedule is not affected.
Steel Beam Type and Application
|
Type |
Describe |
Main materials |
Typical Applications |
|
W-beam |
Wide flange beams, often used in high-rise buildings |
Iron, aluminum |
Large frames, beams, and roof supports |
|
H-beam |
The shape resembles the letter H and has a strong load-bearing capacity |
iron |
Skyscrapers and the main structures of industrial plants |
|
I-beam |
Classic I-beam |
Iron, aluminum |
Building beams, bridges, and equipment supports |
|
T-section Beam |
T-section beams for special connections |
Iron, aluminum |
Structural frames, door and window supports, decorative components |
|
L-shape Beam |
L-shaped angle steel, used for connection and reinforcement |
Iron, aluminum |
Building edges, frame connections, and brackets |
|
Broad Beams |
Wide cross-section beam, high stability |
iron |
Large buildings and heavily loaded structures |

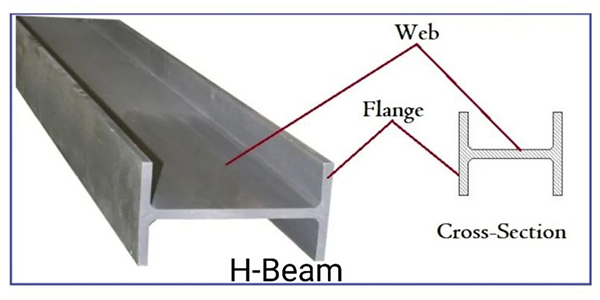

H-beam Common Sizes and Specifications
|
Name |
Section height (H) |
Section width (B) |
Web thickness (t1) |
Flange thickness (t2) |
Weight per meter (Weight/m) |
|
HE-B Series |
100 mm - 1000 mm |
100 mm - 300 mm |
6.5 mm - 21.5 mm |
10 mm - 38.5 mm |
20.4 kg - 355 kg |
|
HM Series |
100 mm - 600 mm |
100 mm - 300 mm |
6 mm - 15 mm |
8 mm - 25 mm |
17.1 kg - 157 kg |

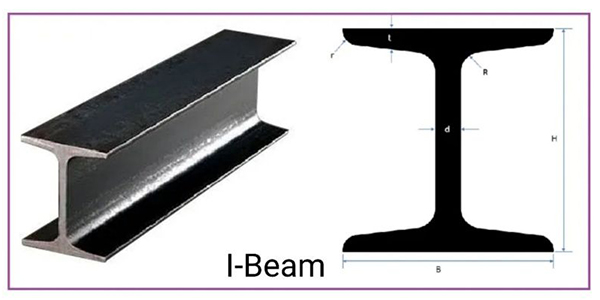

I-beam Common Sizes and Specifications
|
Name |
Section height (H) |
Section width (B) |
Web thickness (t1) |
Flange thickness (t2) |
Weight per meter (Weight/m) |
|
National standard I-beam |
100 mm - 630 mm |
58 mm - 180 mm |
4.5 mm - 17 mm |
7.6 mm - 26 mm |
9.46 kg - 157 kg |
|
Japanese standard I-beam |
75 mm - 600 mm |
40 mm - 200 mm |
3 mm - 15 mm |
5 mm - 22 mm |
5.23 kg - 131 kg |
