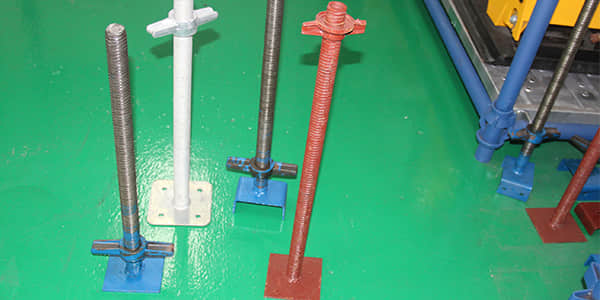

The Cuplock Base Jack, or sometimes referred to as a scaffolding screw jack or adjustable base jack, is an essential accessory that is used at the bottom of a Cuplock modular scaffolding system. The Base Jack's fundamental role is to create a stable, level, and adjustable base for the scaffold system when using uneven or sloped ground.
The Heavy-Duty Cuplock Base Jack is the most important tool to ensure absolute stability and levelness of your scaffolding system on a job site. It’s designed specifically to deal with the rigours of high-rise buildings, heavy industrial projects, and rough and varied terrains. The Heavy-Duty Cuplock Base Jack gives you precise height adjustment and withstands high axial load. It exceeds safety regulation requirements. The Heavy-Duty Cuplock Base Jack is an exacting product, and it is an investment in construction efficiency and will enhance safety on site. We have a number of sizes and surface finishes to suit any Cuplock Scaffolding System.
Function and Purpose
- Making adjustments: The threaded rod and the adjustable jack nut allow for accurate adjustments in height to mitigate differences in the level of the ground, ensuring the vertical members (posts) of the scaffold system start perfectly plumb and level.
- Weight Distribution: The base plate at the bottom of the jack distributes the load that is concentrated on the standard of the scaffold over a wider area, often resting on sole boards or on a solid surface.
- Compatibility: The jack fits into the bottom of the Cuplock standards (vertical tubes) to ensure a secure fit. The outer diameter (OD) of the Cuplock standards is 48.3 mm.
Key Technical Specifications
Specification Parameter |
Standard Options |
|
Screw Length |
450mm,600mm,750mm (Customizable) |
|
Adjustment Range |
300mm−550mm (Varies by screw length) |
|
Outer Diameter |
Φ38mm,Φ48mm |
|
Wall Thickness |
4.0mm,5.0mm (Heavy Duty) |
|
Thread Type |
Square Thread or Trapezoidal Thread (Easier operation) |
|
Base Plate Size |
150×150mm,120×120mm (Thickness 6mm) |
|
Surface Finish |
Hot Dip Galvanized (HDG) / Electro-Painted / Powder Coated |
|
Material Standard |
Q235, Q345 High-Strength Steel |
Inquiry Advantages
- Manufacturer Direct Pricing: As a manufacturer, we offer extremely competitive manufacturer direct pricing, cutting out all middle tiers.
- Quick Delivery: With our state-of-the-art automated production lines and stock, we are able to deliver quickly, often within 2-4 weeks of your standard order.
- Customization: We can provide OEM/ODM customization services tailored to your project, such as customized lengths, base plate dimensions, and custom load specifications.
We would love for you to reach out to receive the complete Cuplock Base Jack product catalog with all technical specifications.
