Cuplock Intermediate Transom Manufacturer

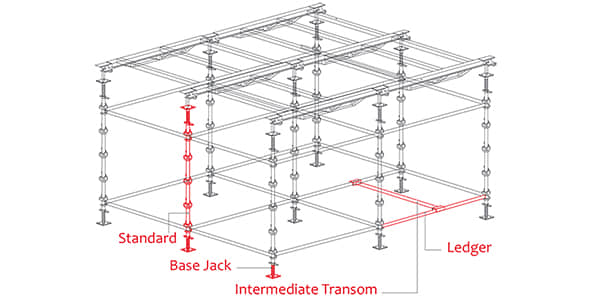

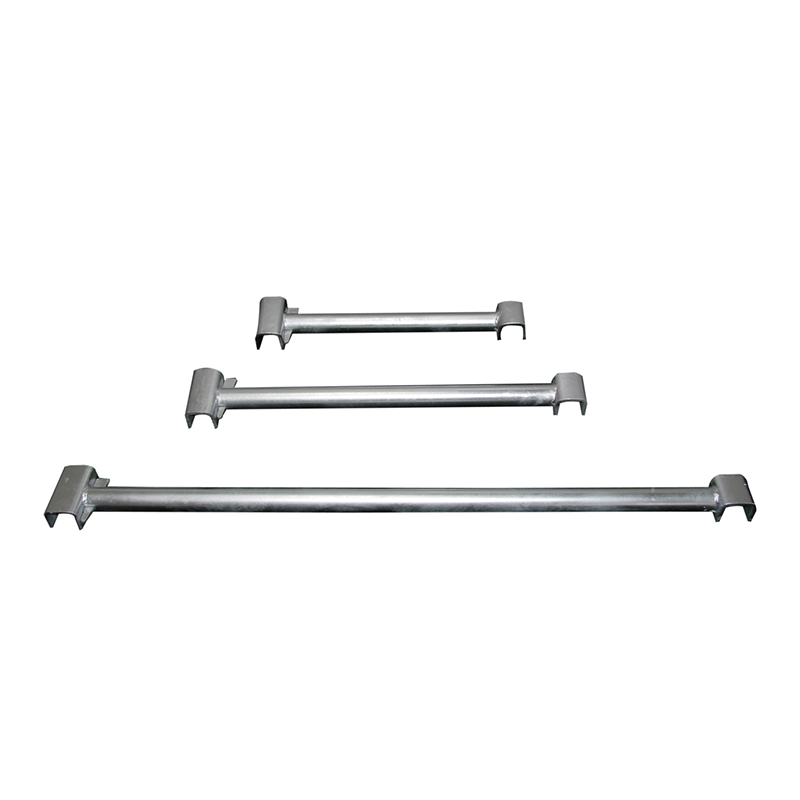

The Cuplock Intermediate Crossbar is a key component of the Cuplock Scaffolding System and has a 'claw' or 'blade' end on each side, designed to mate with the Cuplock System's unique 'cup' locking mechanism. Its primary function is to provide intermediate support for the scaffolding deck.
As a leading supplier of cuplock intermediate transom, AJ Building promises to provide you with products made of high-strength steel, durable and easy to install, perfectly compatible with your Cuplock system. Choosing us, you will get excellent product quality, competitive price, timely delivery and professional support.
Function
- Provide platform support: It does not provide primary support to the working platform (e.g., a gangplank of steel or a wooden board). It can augment the support of the working platform between the two horizontal main bars (ledger), and the middle brace can provide additional intermediate support. This can prevent the gangplank from bending or sagging under excessive force in the mid-section, which will help preserve stability and safety while using the working platform.
- Create work areas: By connecting the vertical and horizontal poles of the scaffold, the center cross braces help to divide and define different working areas, providing safe footing for workers and materials.
- Increase structural stability: As a transverse connector, it enhances the rigidity and stability of the entire scaffolding structure, reduces swaying, and improves the overall load-bearing capacity of the system.
Feature
Features
-
Cuplock Connection
Locking is completed by simply tapping with a hammer, without the need for bolts or nuts, greatly improving the efficiency of construction and disassembly. -
Standard Sizes
A range of standard lengths, which will accommodate different spacing or design requirements of scaffolding, in addition to special standards as requested by clients.
-
Safe and Dependable
The design complies with international safety standards to provide a safe, load-bearing product in use.
Technical specifications (customizable)
- Material: High-quality Q235/Q345 steel (or equivalent international standard)
- Surface treatment: hot dip galvanizing/painting (customizable color)
- Standard length: 0.6m, 0.9m, 1m, 1.2m, 1.3m, 1.5m, 1.6m, 1.8m, 2.0m, 2.5m (custom length available upon request)
- Tube diameter: outer diameter 48.3 mm, thickness 3.2 mm
- Compliance: Conforms to relevant international standards such as EN 12810, AS/NZS 1576, BS 1139, etc. (Please specify the compliance standard you require when enquiring).
Applications
¤ Commercial & Residential Construction
¤ Industrial Plants & Refineries
¤ Bridge Construction & Maintenance
¤ Shipbuilding
¤ Event Staging & Grandstands
¤ Temporary Structures
Why Choose Our Cuplock Intermediate Transom?
We are a premier manufacturer and supplier of scaffolding. We provide high-quality scaffolding products and professional customer service for our international clients. We fully understand the unique demands of global projects and offer:
- Competitive Pricing: Superior scaffolding at value pricing, never sacrificing quality.
- Delivery On-Time: Efficient shipping and logistics management to your desired location.
- Customization Options: We can customize your products to meet your project's unique requirements.
