Size 5 Acrow Prop Manufacturer
For serious construction, remodelling, and shoring projects that require vertical support over a substantial range, the Size 5 Acrow Prop offers an extended range, providing a robust and reliable solution for the most demanding tasks. Engineered for stability and strength, these adjustable steel props are an essential component for ensuring safety and structural integrity on the job site.
AJ Scaffolding provides you with columns of specifications 0-5, and provides other scaffolding and formwork products, and supports customization. Welcome to consult and purchase!
Features of Size 4 Acrow Prop
Key Features of the Size 5 Acrow Prop
- Expansive Height Adjustment: One of the most important things to note about the Size 5 Acrow Prop is its significant height adjustment range. The prop range typically goes from about 12 feet (3.6 metres) to 20 feet (6.1 metres), which is very important for projects that involve high ceilings, deep excavations, or major elevation differences.
- Heavy Duty Steel Construction: Made from high-quality, heavy-gauge steel these props are designed to stand up to the construct environment. A durable corrosion resistant finish, usually painted or galvanized, is resistant to the elements and enables a long service life.
- Precise Adjustment System: Heavy-duty external threaded tube and collar with handle make for an accurate and secure height adjustment. A heavy-duty steel pin is inserted through the inner tube to lock the prop at your desired height, effectively preventing it from slipping accidentally.
- Steady & Secure Support: Each size 5 Acrow Prop has a solid steel base plate as well as a solid steel top plate which is used to spread the supported load more evenly, resulting in more stability. They usually come with pre-drilled holes to allow for securing to the floor, ceilings, or timber beams.
Specification Details
- Adjustable Height Range: Approximately 12 ft (3.6m) to 20 ft (6.1m)
- Outer Tube Diameter: Typically around 60mm
- Inner Tube Diameter: Typically around 48mm
- Material: High-tensile steel
- Finish: painted or galvanized for corrosion resistance
Applications
The extended reach of the Size 5 Acrow Prop makes it suitable for a wide range of applications, including:

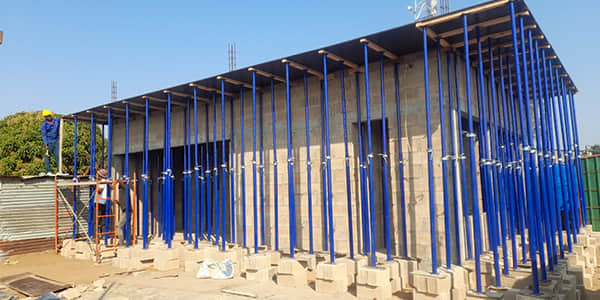

Provide temporary support of formwork for high concrete slabs and beams.
Shore deep excavations and trenches.
Support high ceilings, roofs, and canopies during construction or repair.
Needle and retain façade on large-scale renovation projects.
Rake shores to brace and stabilize vertical structures.
