Steel Wall Formwork Factory

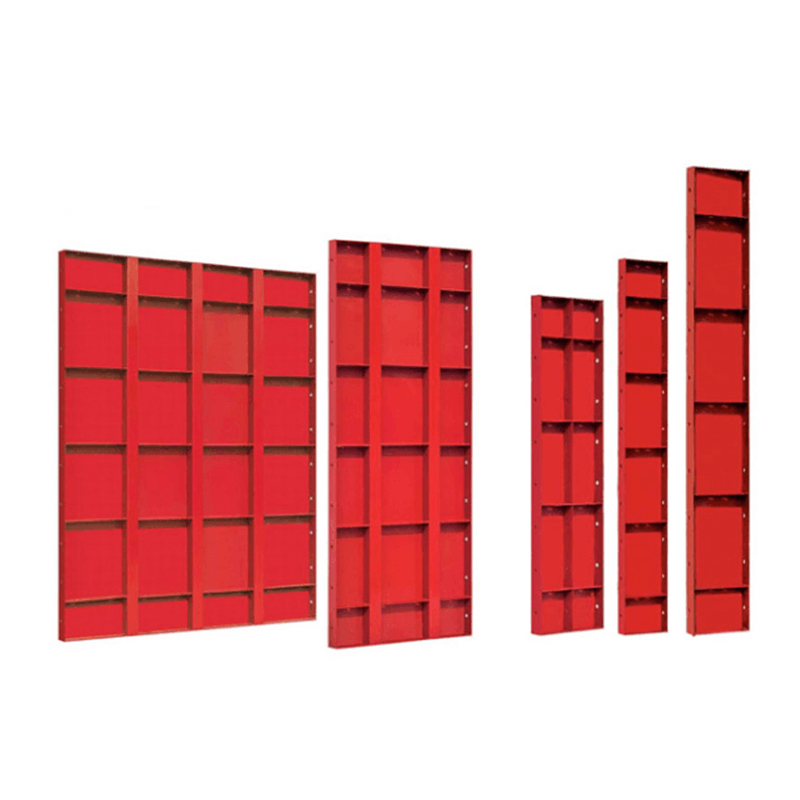

Steel wall formwork is a strong, reusable, modular system designed to shape and support wet concrete during the construction of vertical structures such as walls, columns and retaining walls.
As a trusted Chinese manufacturer with over 26 years of experience, we provide high-quality steel wall formwork systems to support contractors worldwide. Our products focus on precision, durability and cost-effectiveness, and we provide excellent customer support and tailor-made solutions for your project.
Feature
Material: Premium Q235/Q345 steel with galvanized or powder-coated surface treatment for corrosion resistance.
Modular Design: Standardized and customizable panel sizes for easy assembly and adaptability to various project requirements.
Reusability: Engineered for over 200 reuse cycles with proper maintenance, reducing long-term costs.
Load Capacity: Supports heavy concrete pours, withstanding up to 60 kN/m².
Precision Engineering: Ensures smooth, high-quality concrete surfaces with minimal finishing work.
Product Dimensions
As a high-quality steel wall formwork factory, we are able to customize the length, width, thickness, etc. of our products to meet your different engineering needs.
- Length: 1800/1500/1200/900mm
- Width: 600/500/450/300/200mm
- Custom Sizes: Up to 3000mm x 1800mm, tailored to project specifications.
- Panel Thickness: 3mm - 5mm (customizable).
- Weight: 15-50 kg/m², depending on size and thickness.
Applications
High-rise buildings and skyscrapers.
Residential and commercial complexes.
Infrastructure projects (bridges, tunnels, dams).
Industrial facilities and warehouses.

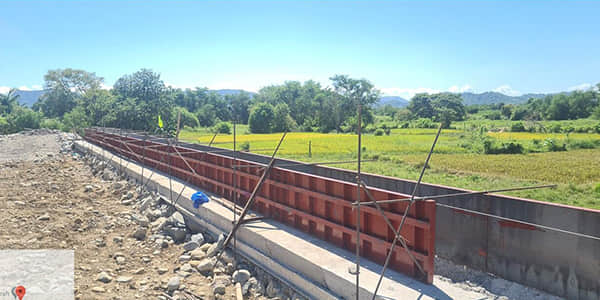

Retaining walls and foundations.
