Formwork Spring Clamps Factory

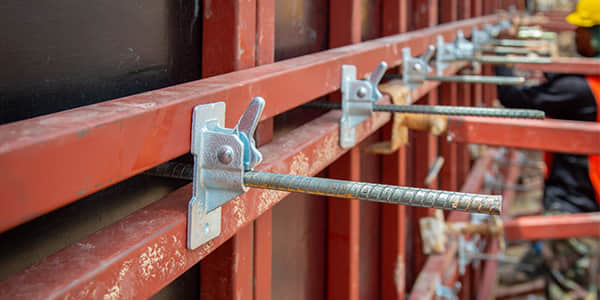

This formwork spring clamp is strengthened to support well above significant loads up to 25 kN in some designs, and the tensioner tool is provided to adequately tighten the clamp and to allow the shuttering process to be done more quickly. The surface treatments, either galvanized or painted, help rust-proof the fittings to be durable for repetitive use on construction sites. It is multifunctional, lightweight, and able to be utilized with most formwork systems, such as steel, timber, or aluminum systems, making these fittings a highly desireable option to be used on walls, columns, and other structures.
AJ building provides you with formwork Spring Clamps that meet EN and BS standards . There are different styles, colors, load-bearing and surface treatment processes. You can customize the product. For more information, please send us an email.
Specification
We offer formwork Spring Clamps in different types, sizes and load-bearing capacities to meet your different needs.
Type:

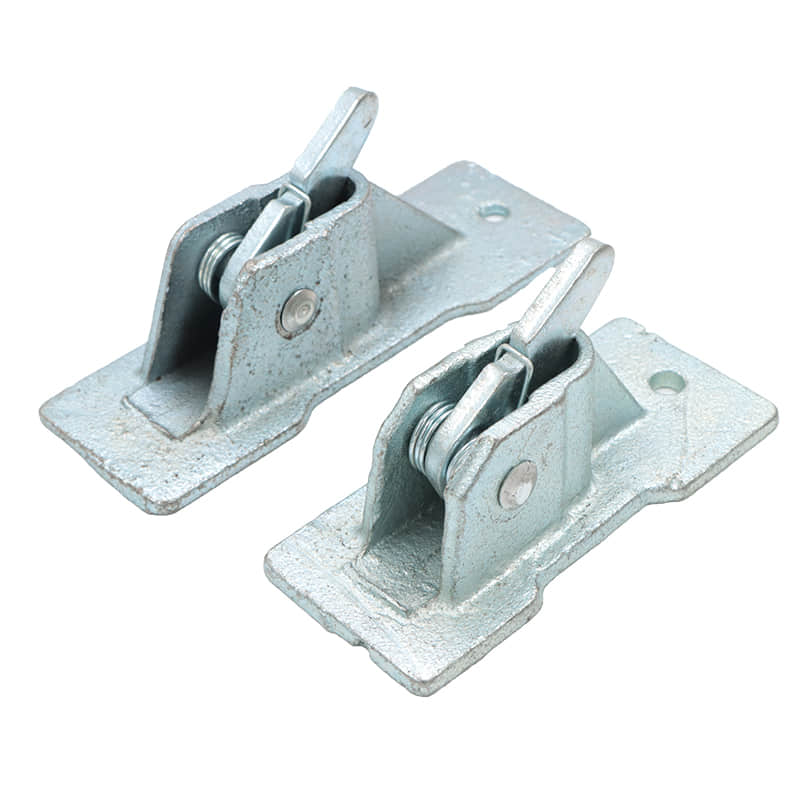

Cast Iron Rapid Clamps (Flat Clamp)
Pressed Rapid Clamps (Spring Clamps)
Size : 75x105mm Rebar Size: 5-10mm
Size : 75x110mm Rebar Size: 5-12mm
Load capacity:
6mm tension bar appr. 4KN
8mm tension bar appr. 7KN
10mm tension bar appr. 11KN
Product Customization
All products are strictly quality controlled, with SGS, ISO, CE and other certifications, and support customized services
- Surface Treatment : Galvanized,Dip Painted,Powder coated
- Color : Silver,Orange,Red,Orange.Blue.Yellow.Green.Grey.etc
How to Use
¤ Position the formwork panels in the desired alignment.
¤ Place the clamp over the edge of the panels.
¤ Press down to engage the spring mechanism, securing the clamp in place.
¤ Adjust as needed to ensure a tight fit before pouring concrete.
Why Choose Our Formwork Spring Clamp?
Unlike traditional clamping methods, our Formwork Spring Clamp combines ease of use with industrial-grade strength. Its spring mechanism allows for one-handed operation, freeing up your other hand for adjustments or additional tasks. Plus, its robust construction ensures it can handle heavy-duty applications without bending or breaking.
