H20 Beam Manufacturer

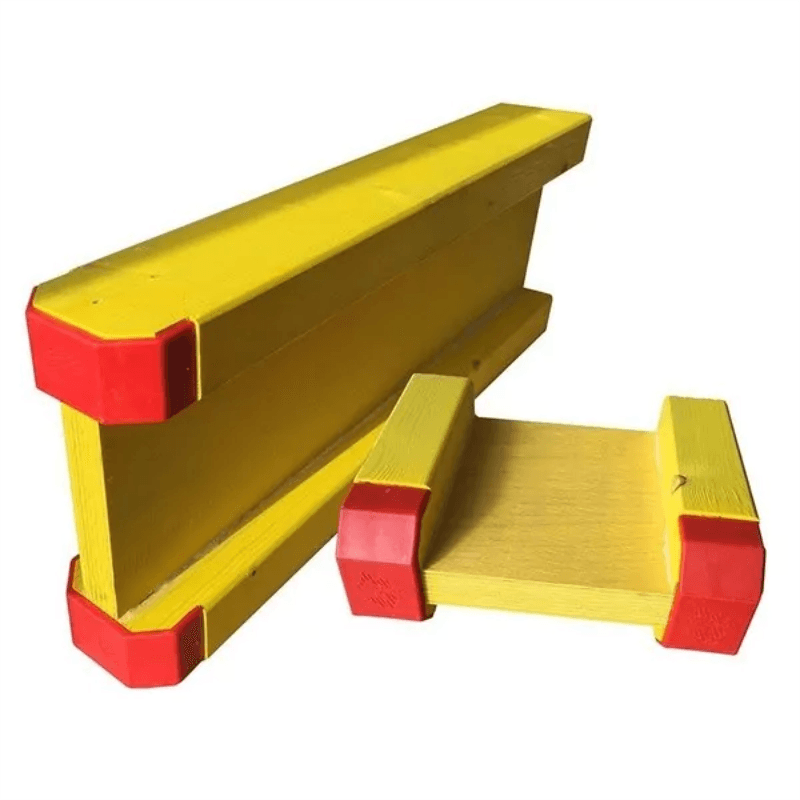

An H20 Beam is characterized by its distinctive "H" or "I" cross-section and its nominal height of 20 centimeters (200mm) – hence "H20". These beams are typically constructed from high-quality solid timber flanges (often spruce or fir wood) and a multi-ply plywood web. This composite design provides an excellent strength-to-weight ratio, allowing for easy handling while maintaining superior load-bearing capabilities.
AJ Building provides you with high quality H20 formwork beams with customized sizes. We also provide building materials such as scaffolding and formwork, and are your trusted one-stop building material export partner.
Benefits
-
Enhanced Protection

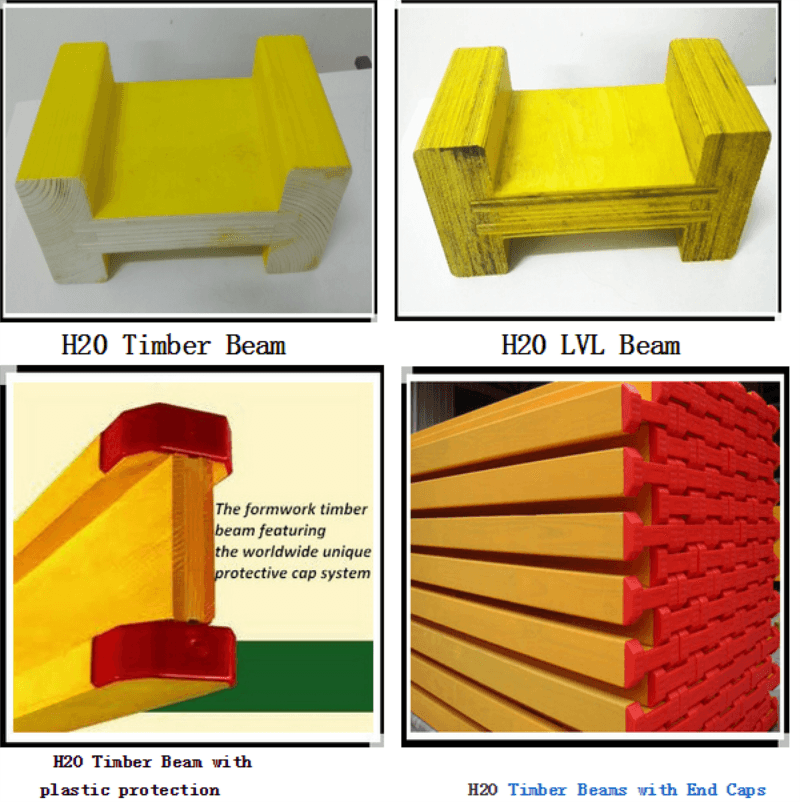

Surfaced with a unique yellow waterproof and UV-resistant paint/stain and fitted with plastic end caps, it resists moisture, impact, and extends service life. -
Versatile
Universally compatible with a wide range of formwork systems, including traditional timber, steel, and aluminium systems, and can be used as primary or secondary beams.
-
High Reusability
Designed for multiple use cycles, it can provide significant cost savings over the life of the project.
Product Specifications
Our H20 beams are manufactured under strict quality controls to ensure high performance and reliability. They comply with EN 13377 standards and can be customized.
- Beam Height: 200 mm
- Flange Width: 80 mm
- Flange Height: 40 mm
- Web Thickness: 27mm, 28mm
- Flange Material: Solid Spruce / Fir Wood
- Web Material: Three-layer solid fir
- Adhesive: Melamine resin-based glue, type EN 30, approved for fastening wooden structural parts
- Finish: Yellow Waterproof Paint/Stain, Plastic End Caps
- Standard Lengths: 1.95 / 2.45 / 2.65 / 2.90 / 3.30 / 3.60 / 3.90 / 4.50 / 4.90 / 5.90 M
- Approx. Weight: ~4.7 - 4.9 kg/linear meter
- Load Capacity: Detailed allowable bending moment, shear, and bearing resistance data available upon request, conforming to EN 13377.
Application Scenario

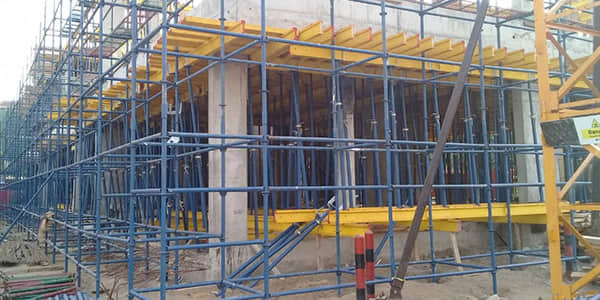

Ceiling formworks
Wall formworks
Bridge formworks
Tunnel formworks
Special formworks
Scaffolding
Working platforms
