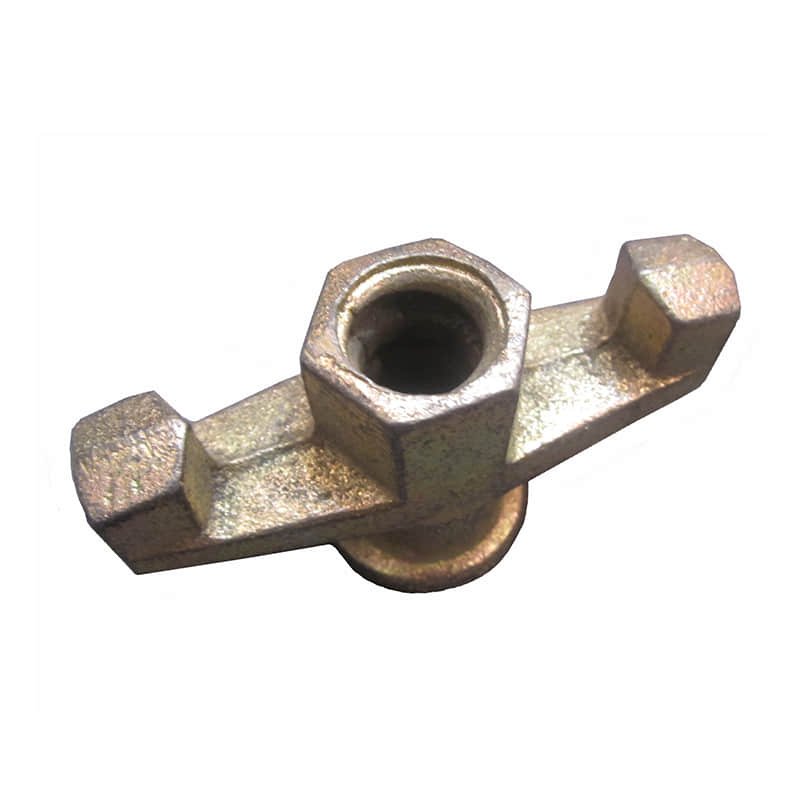

Heavy-duty Formwork Anchor Nut (Wing Nut) for Formwork has been designed to combat a number of engineering problems. These include: thread stripping from threads, failure of a cast component, and a catastrophic formwork blowout when subjected to extremely high concrete pressures.
This heavy-duty Formwork Anchor Nut has been made from a high-strength cast iron and has been precision engineered to make the Nut itself, and the threads to the Nut, provide 100% positive locking when subject to extreme lateral forces. It is the ultimate safe formwork component for use on high-rise commercial buildings, for bridge pier formwork, and other large tunnel shuttering applications.
Specifications
|
Technical Parameters |
Product Specifications & Standards |
|
Product Name |
Formwork Anchor Nut / Wing Nut / Flange Nut |
|
Compatible Tie Rod |
Standard D15 / D17 mm Shuttering Tie Rod |
|
Material Grade |
High-Tensile Precision Casting Iron (Ductile Iron) |
|
Ultimate Breaking Load |
180 KN – 190 KN (Heavy-Duty Industrial Rating) |
|
Unit Weight |
310g ± 5g (Optimized thickness for stress distribution) |
|
Surface Treatment |
Yellow Zinc Plated (Electro-galvanized) / Hot-Dip Galvanized / Black Oxide |
|
Customization |
OEM/ODM manufacturing based on custom technical drawings or samples |
Application Scenarios
Our heavy-duty formwork wing nuts are designed to perform flawlessly in high-demand structural engineering fields, including:
- High-Rise Shear Walls: Maintaining tight tolerances during continuous, high-volume concrete lifts.

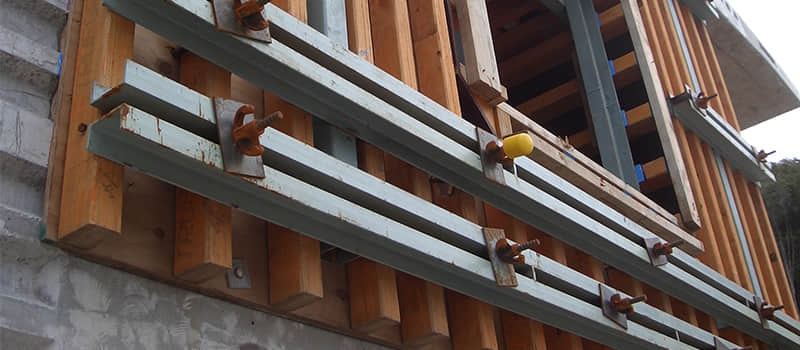

- Civil Infrastructure & Bridges: Securing heavy timber or steel formwork configurations for heavy piers and abutments.
FAQ
How much can a 15/17mm formwork wing nut hold?
- Our standard 15/17mm formwork wing nut has an ultimate breaking load of 180 KN to 190 KN. As such it is more than sufficient to counteract huge lateral forces of fresh concrete on the shuttering. As a result, our wing nut does not ‘strip’ or ‘crack’ under such loads.
Which standards are the formwork anchor nuts made to for export?
- Our formwork anchor nuts are produced and tested in accordance with the international scaffolding and formwork standards, i.e. EN 12811. We carry out a strict quality control from analysis of the raw materials up to the final load-cell destruction test. Material Test Certificates (MTC) are issued upon request to ensure compliance with individual projects.
How does the surface treatment affect the reuse cycle of formwork nuts?
- The surface of a tool is an important aspect of its performance during a job. Our 15/17mm Formwork Wing Nut features a Yellow Zinc Galvanized surface finish, which is the best protection against the concrete’s highly alkaline and moist nature. Unlike black, untreated Formwork nuts, which start to rust after the first use, our Galvanized Formwork Wing Nuts can be reused for dozens of projects after a simple cleaning. Thus, they are more cost-effective than the other Formwork nuts, used for many jobs.
