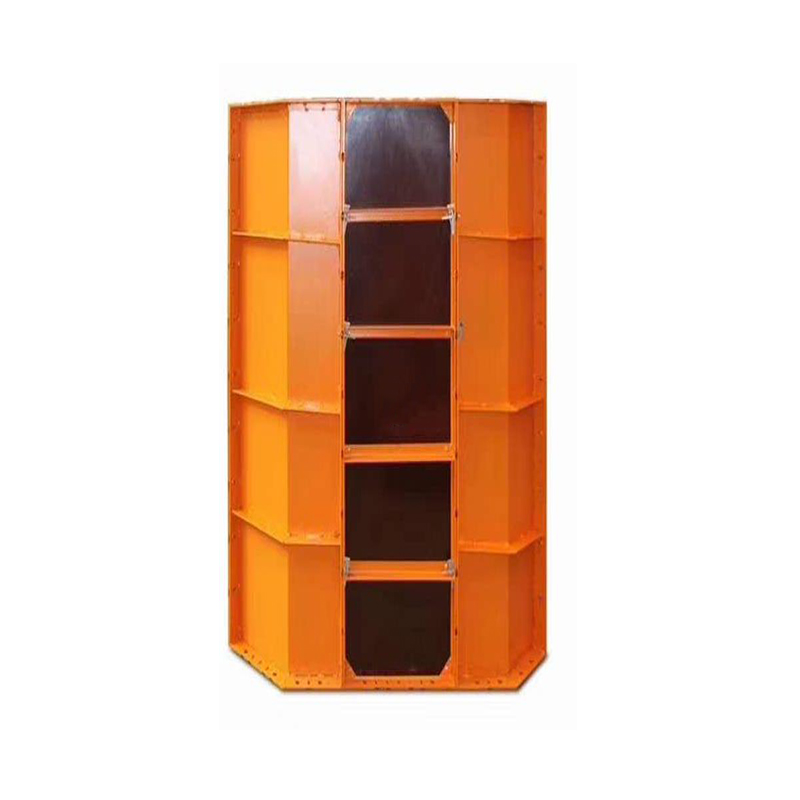

The Q235 Steel Frame Euroform System is our cost-effective building framing system. It has been specifically designed for the contractor who requires a ‘best all round’ solution for his building project. The Q235 material is high-grade structural steel that has been designed to be reusable over 50 cycles and be light enough to be manually handled. All components have been pre-sized during manufacturing, removing the need for on-site alteration. The Q235 Euroform System is suitable for the standard residential wall, foundations, and simple modular style commercial buildings.
Specifications
Our Euroform panels are precision-manufactured to ensure 100% compatibility with international U-Clip and Long Pin systems.
|
Height (mm) |
Width Options (mm) |
Engineering Application Insight |
|
1800 |
600, 550, 500, 450, 400, 350, 300, 250, 200 |
Core Walls: Minimizes horizontal joints, ensuring a seamless "fair-faced" concrete finish. |
|
1500 |
600, 550, 500, 450, 400, 350, 300, 250, 200 |
Standard Housing: The optimal balance between coverage area and manual handling weight. |
|
1200 |
600, 550, 500, 450, 400, 350, 300, 250, 200 |
Foundations & Beams: Built to withstand extreme lateral pressure during heavy-duty pours. |
|
900 |
600, 550, 500, 450, 400, 350, 300, 250, 200 |
Utility & Filler: Perfect for leveling and navigating narrow spaces or intricate corners. |
Why Choose Our Euroform System?
· Optimized Ductility (Expertise) – The frame made of Q235 structural steel has better weldability and higher ductility than stiffened steel plates used in other products. This design is able to absorb loads caused by the vibration of concrete and maintain its durability and anti-cracking performance for a long time.
· Precision Hole Alignment (Experience) – Although all our frames can be punched using high-speed CNC technology, we have found that the tolerance on hole position is kept to ±0.5mm across the board for all sizes of frame, including the largest at 600x1800mm down to the smallest at 200x900mm. Our flat profiles and accurate manufacturing mean your installation team should not encounter any problems with “sick notes’ from Pins or Joints.
· Industrial-Grade Protection (Trust) – Made from Q235-made frames, our Heavy Duty Range is protected with a special corrosion-resistant coating and available in either Powder Coated or Galvanized finishes. Capable of dozens of cycles, these heavy-duty racks are resistant to the dreaded “rust-creep” that plagues low-cost, lower-quality components.
Q&A
Why is Q235 steel the best choice for modular formwork?
- Q235 is the industry benchmark for construction ROI. It provides sufficient tensile strength (up to 460 MPa) to handle standard concrete side pressures while remaining cost-effective. For projects under 10 stories, Q235 offers the lowest "cost-per-pour" compared to expensive aluminum or heavy-duty alloys.
Can I mix the 1800mm and 1200mm panels in one wall?
- Absolutely. Our entire range—from 1800mm down to 900mm—is built on a universal modular grid. This allows you to stack different heights to reach any wall dimension (e.g., a 1500mm + 1200mm stack for a 2.7m wall) without needing custom timber fillers.
How do you prevent the plywood from delaminating?
- We utilize Phenolic Surface Film and WBP Glue that passes a 72-hour boiling test. Even with Q235 frames, the plywood is the "face" of your concrete; our edges are sealed with waterproof paint to ensure your panels remain flat and smooth pour after pour.
