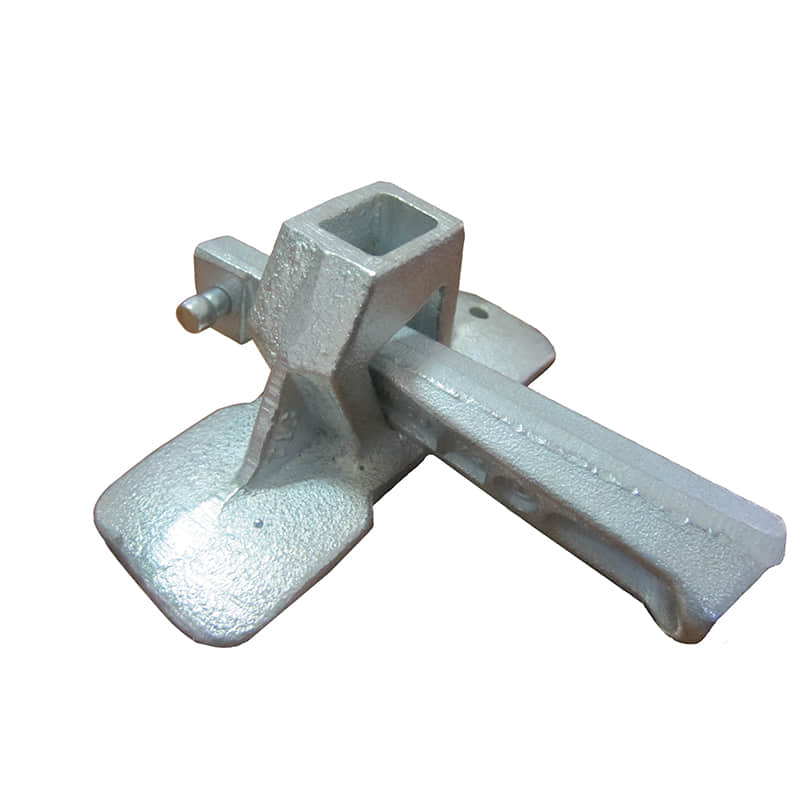

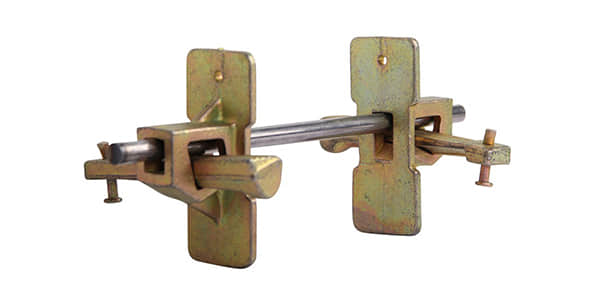

This robust cast formwork clamp is an indispensable accessory for any modern building job. Designed for the utmost efficiency and security, it provides a quick and secure method of fastening and aligning formwork panels (timber, plywood, and modular systems) in readiness for concrete pouring. The clastic heavy construction ensures the utmost durability and loading capacity, and the simple, fast lock fixation reduces assembly and stripping time considerably.
As a manufacturer of formwork accessories, AJ Scaffolding offers a wide variety of products. We support customization and provide quality inspection services. Inquiries are welcome!
|
Feature |
Description |
Benefit to You |
|
Quick-Lock Design |
Quick Formwork Erection, Fast Stripping, Efficiency |
Saves Time & Labor: Quickly enables the assembly and dismantling of the formwork system, increasing productivity on site. |
|
Heavy-Duty Cast Iron |
Durable Formwork Clamp, High Load-Bearing Capacity, Robust |
Maximum Safety & Longevity: Guarantees a rigid connection resistant to the tremendous pressure exerted in pouring fresh concrete, providing first-class durability and reusability. |
|
Galvanized Surface |
Corrosion-Resistant, Galvanized Steel Finish, Weatherproof |
Low Maintenance: Has excellent resistance to rust and corrosion, thus enhancing the longevity of the product, even in the most aggressive construction environment. |
|
Integrated Pin Slot |
Wedge Pin Compatible, Formwork Locking System |
Secure Connection: Specifically designed to enable use with either a standard wedge pin or a locking bar, for positive and high tension locking. |
|
Versatile Use |
Wall Formwork Clamp, Column Formwork Accessory, Shuttering Clamp |
Adaptable: Specifically designed to enable use with either a standard wedge pin or a locking bar, for positive and high tension locking. |
Technical Specifications:
Material: Ductile Cast Iron
Size: for a 6-10mm tie rod.
Weight: Approximately 1.5 kg – 2.5 kg (depending on specific model)
Finish: Hot-Dip Galvanized or Electro-Galvanized (Zinc Plated)
Product Size: 104*41mm 115*52mm；102*43mm 114*50mm
Upgrade your construction efficiency with our heavy-duty quick-lock formwork panel clamps. Contact us today for bulk pricing and rapid delivery!
